Question: 5 Internal Force 8. A force P is applied to a bent rod that is supported by a roller and a pin and bracket.

4 Machines 7 . The compound - lever pruning

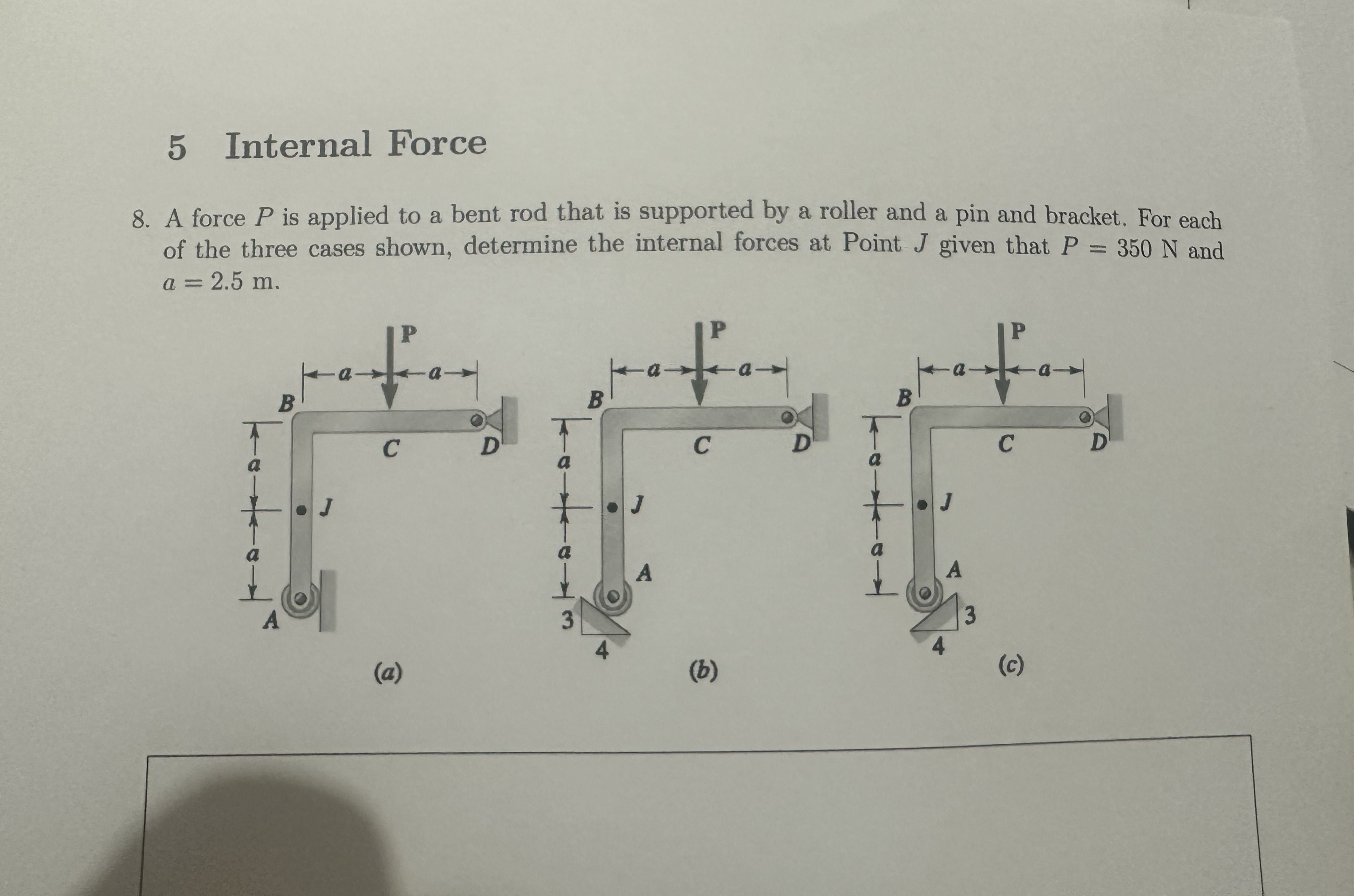

5 Internal Force 8. A force P is applied to a bent rod that is supported by a roller and a pin and bracket. For each of the three cases shown, determine the internal forces at Point J given that P = 350 N and a = 2.5 m. B koton a a P C D T A (a) B B kote a a C a J a A C A 3 3 A (b) (c)

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock

To determine the internal forces at point J for each of the three cases we will analyze the structur... View full answer

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

A force P is applied to a bent rod which is supported by a roller and a pin and bracket. For each of the three cases shown, determine the internal forces at point J.

A force P is applied to a bent rod which is supported by a roller and a pin and bracket. For each of the three cases shown, determine the internal forces at point J. D. Fig. P7.21

A force P is applied to a bent rod which is supported by a roller and a pin and bracket. For each of the three cases shown, determine the internal forces at point J. B. 4 (b) (c) (a} Fig. P7.21

A force P is applied to a bent rod that is supported by a roller and a pin and bracket. For each of the three cases shown, determine the internal forces at Point J. B C D B J B C D C D J (a) (b) (c)
