Question: 4 . Optional Exercise. ( Value: 1 additional point toward the final grade ) . Based on the following exercise, for a given stress state,

4. Optional Exercise. (Value: 1 additional point toward the final grade). Based on the following exercise, for a given stress state, determine a) the normal stresses and b) the shear stresses acting on the oblique face of the shaded triangular element shown in Figure 4. Use an analysis method based on the equilibrium equations of the triangular element.

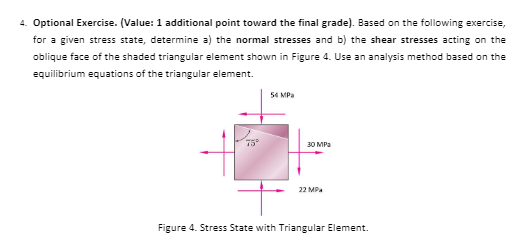

Figure 4. Stress State with Triangular Element.
