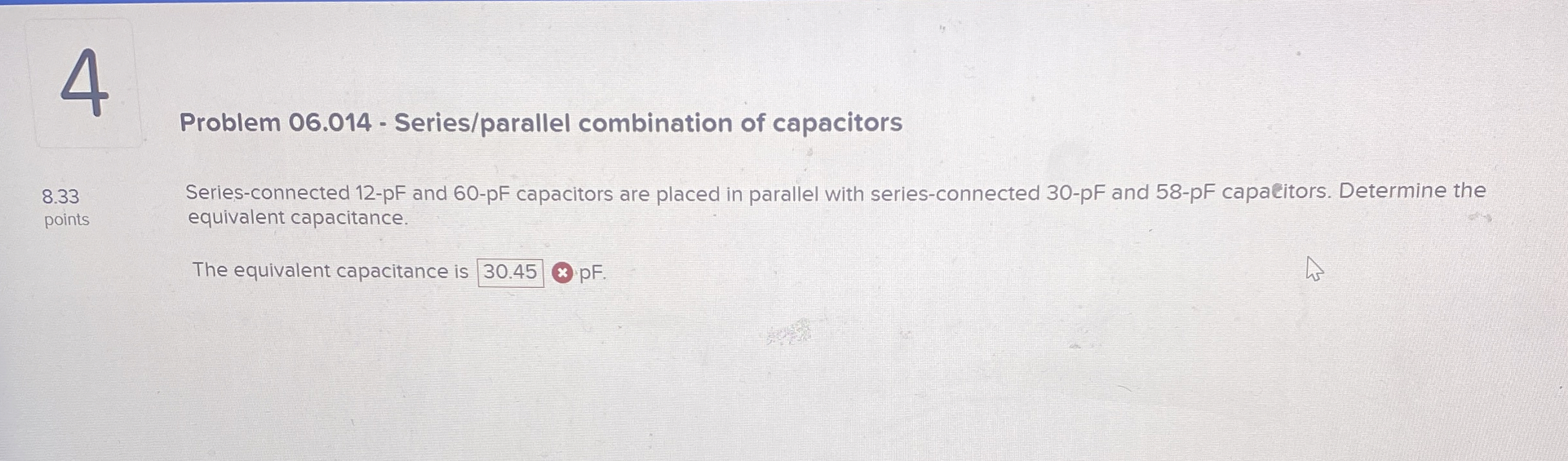

Problem 06.014- Series/parallel combination of capacitors
8.33 Series-connected 12-pF and 60-pF capacitors are placed in parallel with series-connected 30-pF and 58-pF capalitors. Determine the points equivalent capacitance.
The equivalent capacitance is 30.45oxpF.
4 Problem 0 6 . 0 1 4 - Series / parallel

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
