Question: 4. Program P3 CFG. a) Identify the basic blocks for the following program P3 written in pseudo-code b) Draw the control flow graph Program P3

4. Program P3 CFG. a) Identify the basic blocks for the

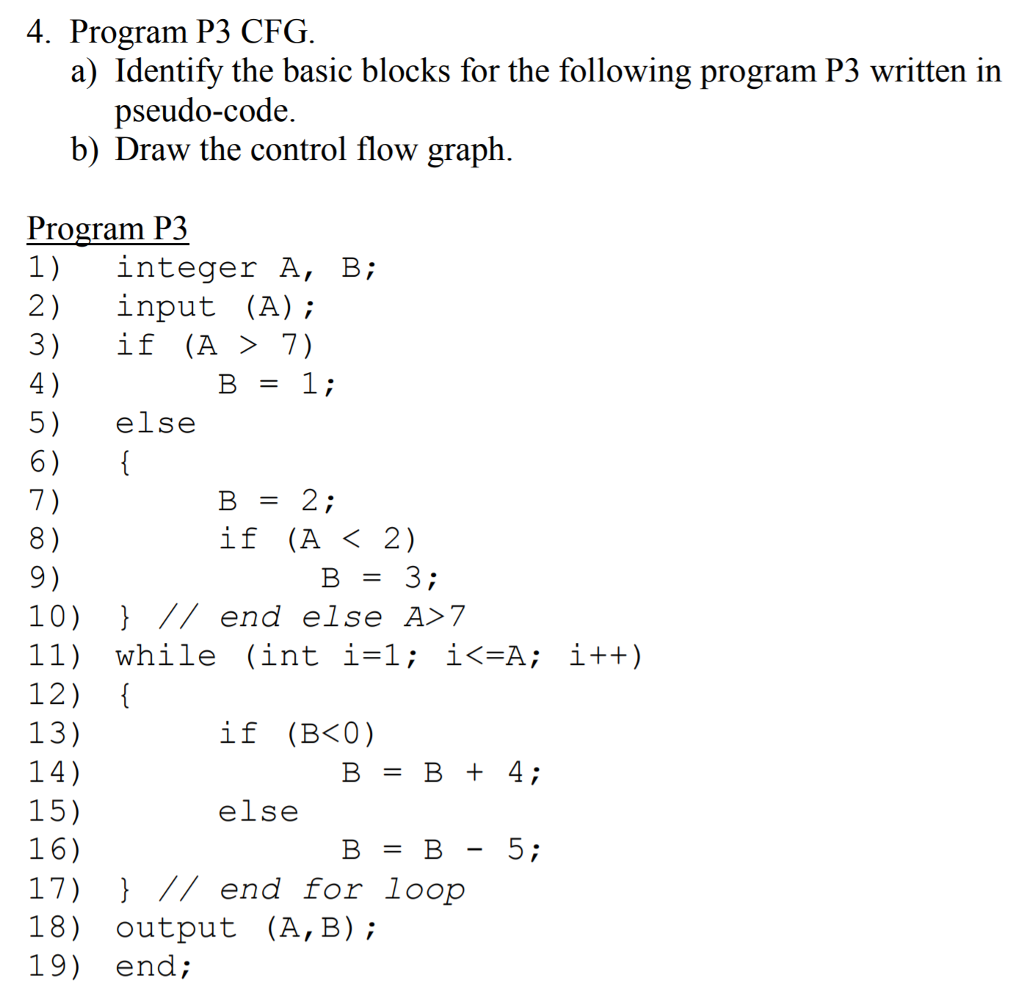

4. Program P3 CFG. a) Identify the basic blocks for the following program P3 written in pseudo-code b) Draw the control flow graph Program P3 1) integer A, B; 2) input (A) 3) if (A7) 5) else 6) B = 2; if (A 7 11) while (int i-1; i
