Question: ( 4 ) The beam is supported by a pin at A and a short link B C . If P = 1 0 k

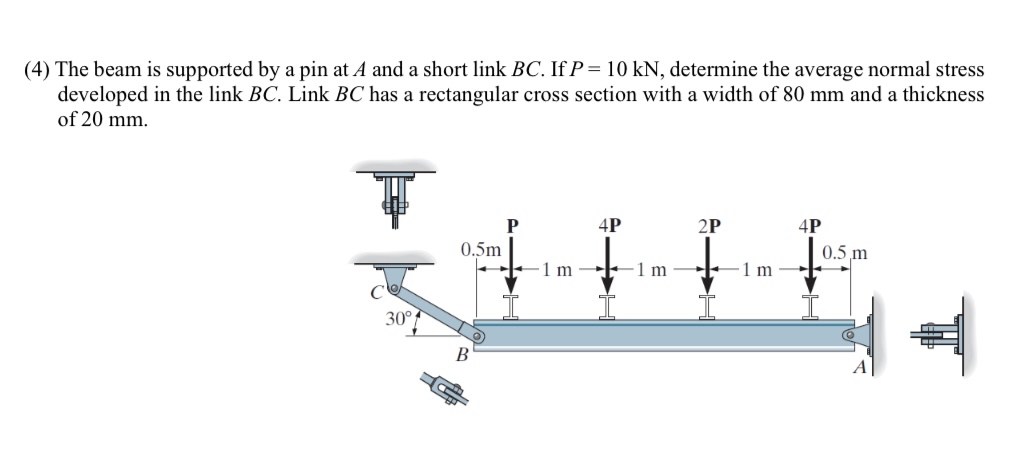

(4) The beam is supported by a pin at A and a short link BC. If P=10kN, determine the average normal stress developed in the link BC. Link BC has a rectangular cross section with a width of 80mm and a thickness of 20mm.
( 4 ) The beam is supported by a pin at A and a

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
