Question: ( 4 ) Using the 4 - Variable Karnaugh map below, minimize the expression to as few literals as possible ( show your largest groupings

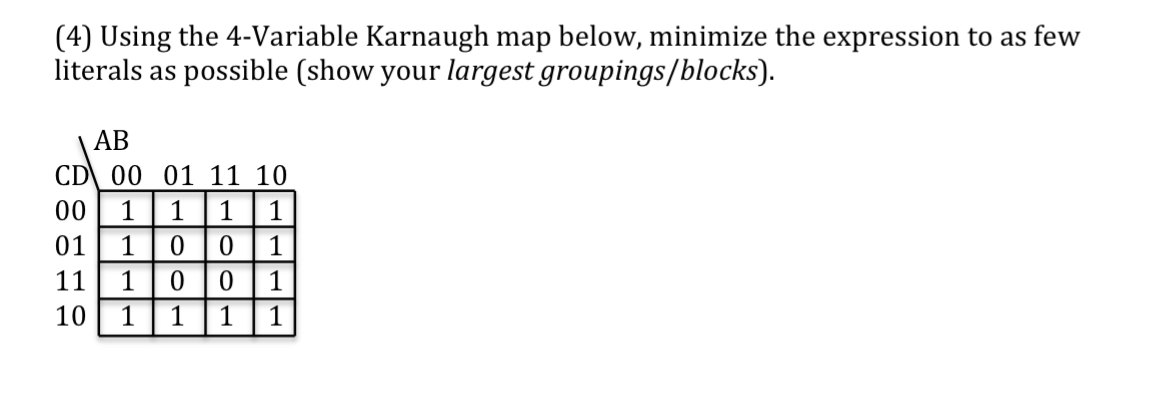

(4) Using the 4-Variable Karnaugh map below, minimize the expression to as few literals as possible (show your largest groupings/blocks).
( 4 ) Using the 4 - Variable Karnaugh map below,

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
