Question: 4.61 a) Use source transformations to find the current i, PSPICE in the circuit in Fig. P4.61. MULTISEM b) Verify your solution by using the

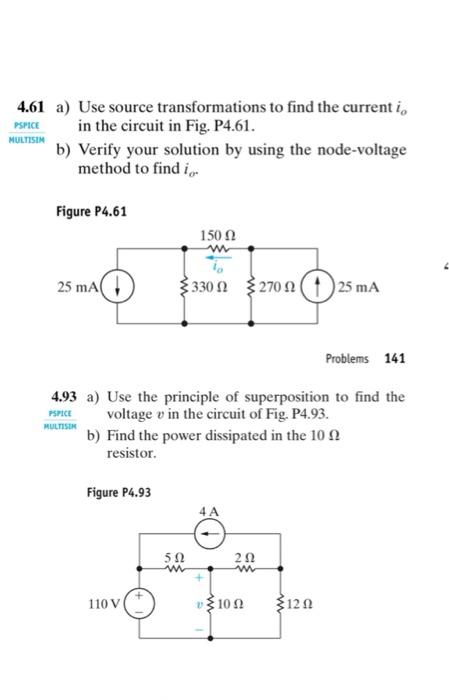

4.61 a) Use source transformations to find the current i, PSPICE in the circuit in Fig. P4.61. MULTISEM b) Verify your solution by using the node-voltage method to find i Figure P4.61 150 w 25 mA 330 02 3270 (25 mA Problems 141 PSPICE MULTISER 4.93 a) Use the principle of superposition to find the voltage v in the circuit of Fig. P4.93. b) Find the power dissipated in the 100 resistor. Figure P4.93 4A 5.0 5 222 w 110 V 10 2120

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
