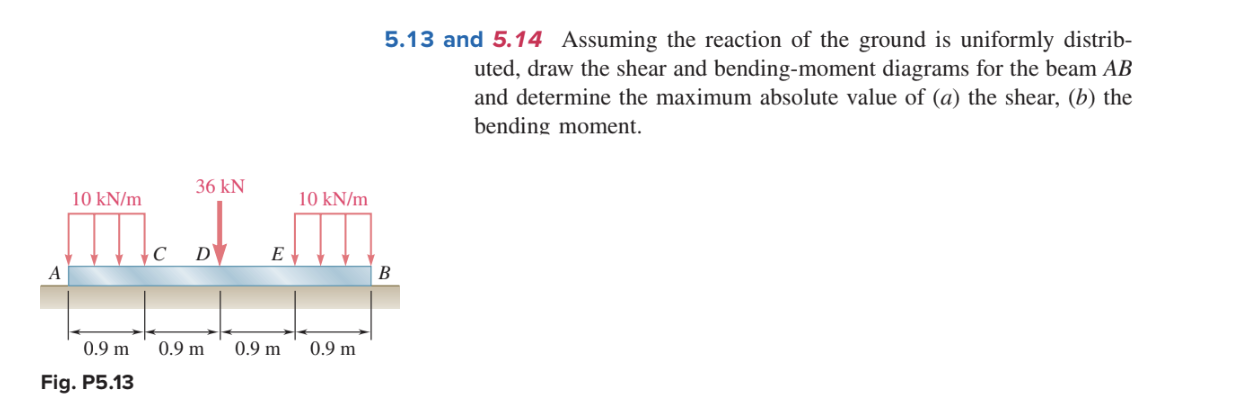

$5\mathrm{.}13$ and $5\mathrm{.}14$ Assuming the reaction of the ground is uniformly distrib$-$

uted, draw the shear and bending$-$moment diagrams for the beam $AB$

and determine the maximum absolute value of $(a)$ the shear, $(b)$ the

bending moment.
