Question: 5 / 1 5 6 A mechanism for pushing small boxes from an assembly line onto a conveyor belt is shown with arm OD and

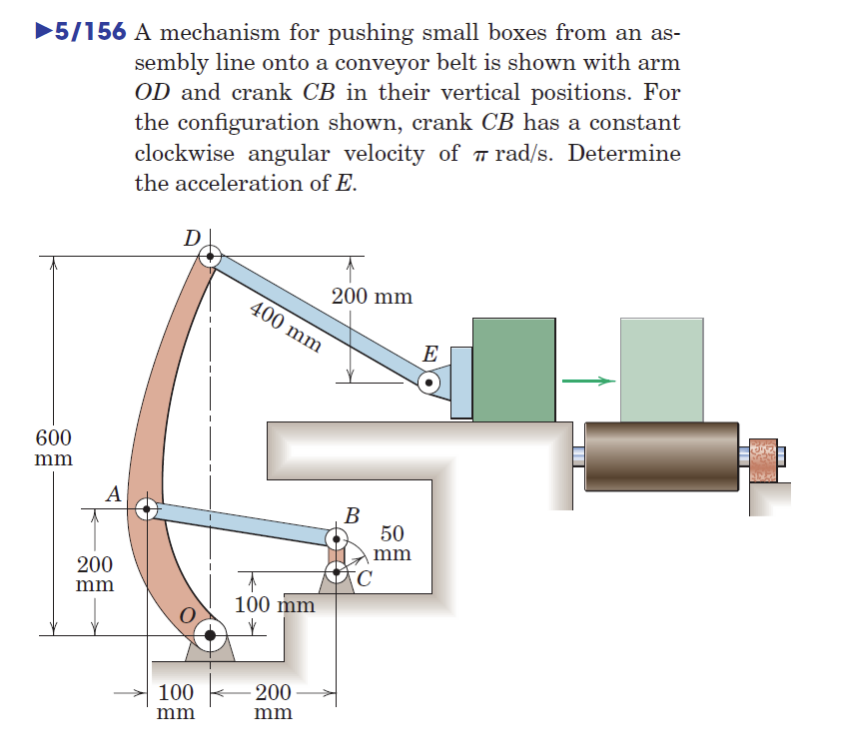

5/156 A mechanism for pushing small boxes from an assembly line onto a conveyor belt is shown with arm OD and crank CB in their vertical positions. For the configuration shown, crank CB has a constant clockwise angular velocity of rad/s. Determine the acceleration of E.5/156 A mechanism for pushing small boxes from an assembly line onto a conveyor belt is shown with arm \( O D \) and crank \( C B \) in their vertical positions. For the configuration shown, crank \( C B \) has a constant clockwise angular velocity of \(\pi \mathrm{rad}/\mathrm{s}\). Determine the acceleration of \( E \).
5 / 1 5 6 A mechanism for pushing small boxes

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
