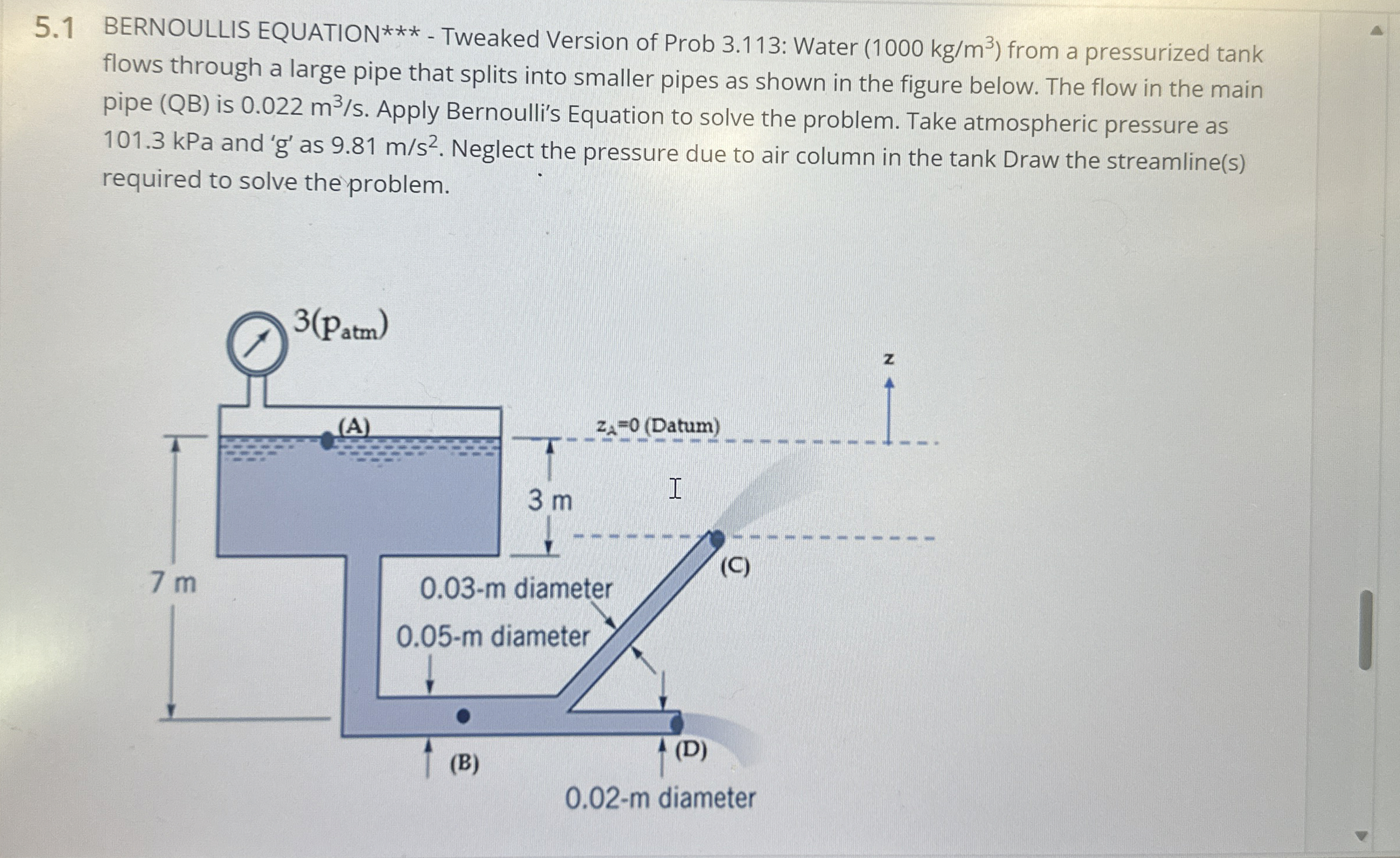

$5\mathrm{.}1$ BERNOULLIS EQUATION$***-$ Tweaked Version of Prob $3\mathrm{.}113$: Water $(1000\frac{kg}{m^3})$ from a pressurized tank flows through a large pipe that splits into smaller pipes as shown in the figure below. The flow in the main pipe $($QB$)$ is $0\mathrm{.}022\frac{m^3}{s}.$ Apply Bernoulli's Equation to solve the problem. Take atmospheric pressure as $101\mathrm{.}3$ kPa and $\text{'}$ g $\text{'}$ as $9\mathrm{.}81\frac{m}{s^2}.$ Neglect the pressure due to air column in the tank Draw the streamline$($s$)$ required to solve the problem.

$1)$ Estimate the elevation of point C $($with datum at A$)$

$2)$Estimate the pressure at B$($inKpa$)$
