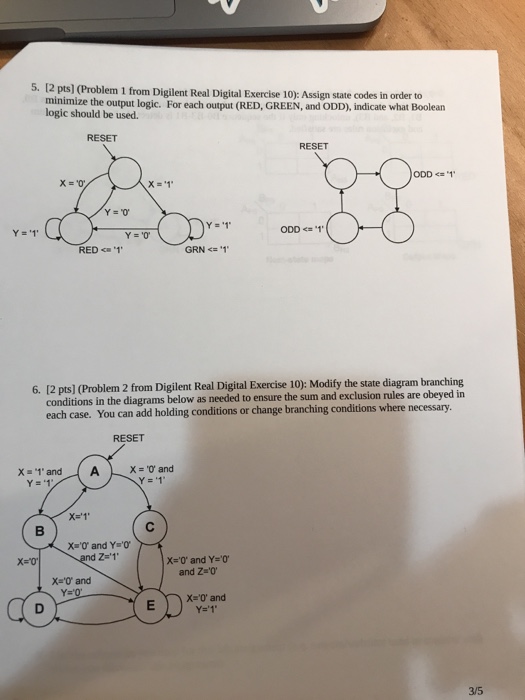

5. 12 pts] (Problem 1 from Digilent Real Digital Exercise 10): Assign state codes in order to minimize the output logic. For each output (RED, GREEN, and ODD), indicate what Boolean logic should be used. RESET RESET Y 0 Y= '1, RED 1 6. 12 pts] (Problem 2 from Digilent Real Digital Exercise 10): Modify the state diagram branching are obeyed in conditions in the diagrams below as needed to ensure the sum and exclusion rules each case. You where necessary. can add holding conditions or change branching conditions RESET Y-1 Xe'0' and Y.ro and 2-'1 x=0, and Y='0' and Z-'o X='0' and 3/5
