Question: 5 . 2 . Determine ( a ) the distance a for which the absolute value of the bending moment in the beam is as

5.2. Determine (a) the distance a for which the absolute value of the bending moment in the beam is as small as possible, (b) the corresponding maximum normal stress due to bending. (See hint of Prob. 5.27.)

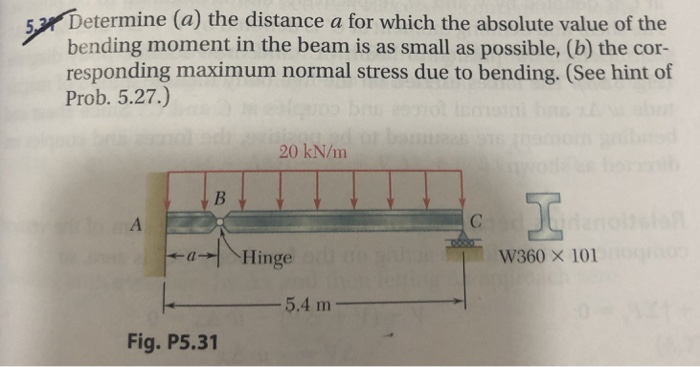

Fig. P5.31
5 . 2 . Determine ( a ) the distance a for which

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
