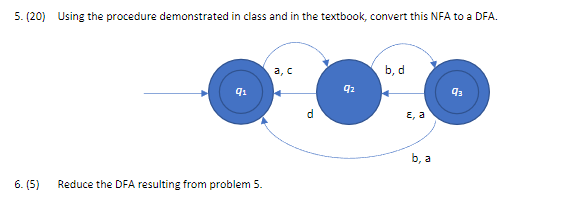

Question: 5. (20) Using the procedure demonstrated in class and in the textbook, convert this NFA to a DFA. a, C b, d 91 93 E,

5. (20) Using the procedure demonstrated in class and in the textbook, convert this NFA to a DFA. a, C b, d 91 93 E, 3 b, 3 6. (5) Reduce the DFA resulting from problem 5.\f

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
