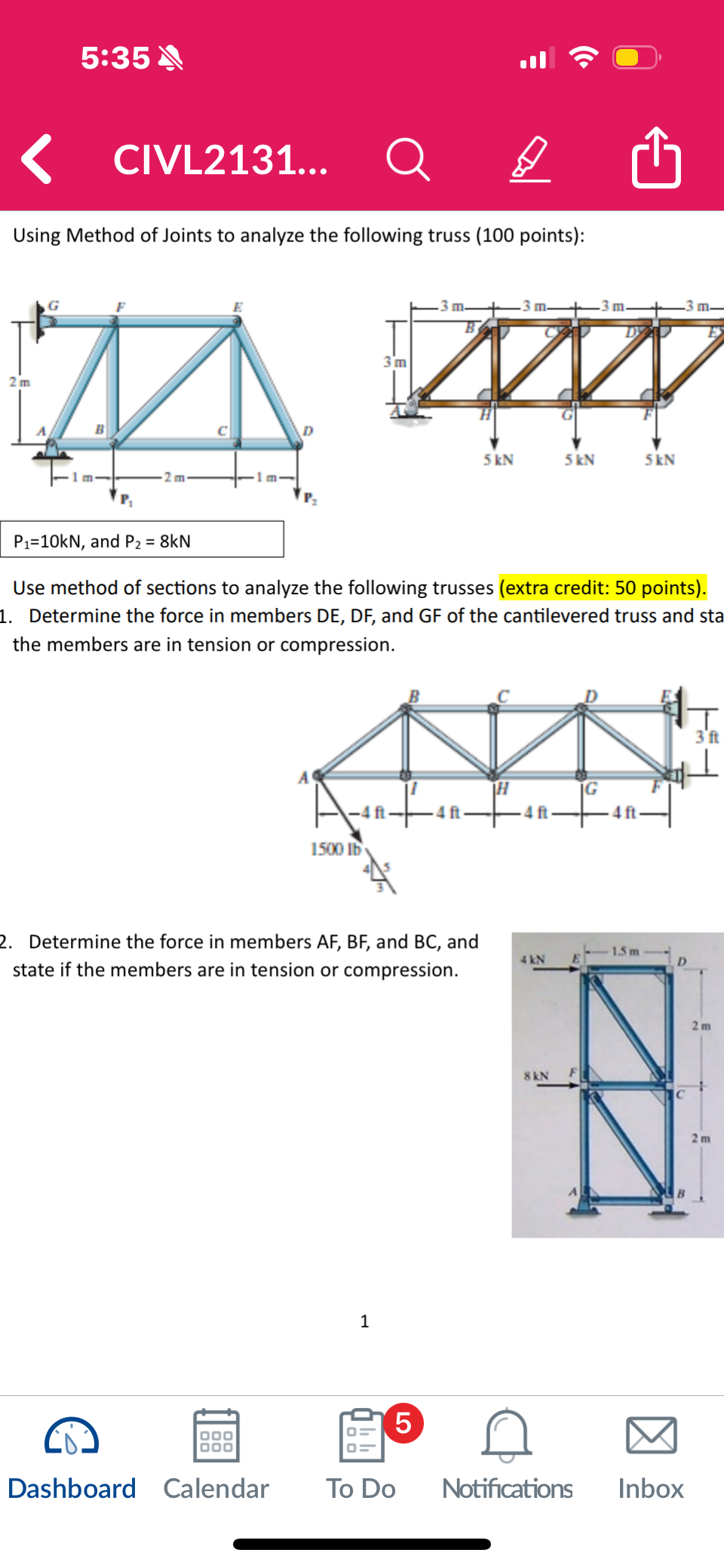

Using Method of Joints to analyze the following truss $(100$ points$)$:

$P_1=10kN,$ and $P_2=8kN$

Use method of sections to analyze the following trusses $($extra credit: $50$ points$).$

Determine the force in members DE$,$ DF$,$ and GF of the cantilevered truss and sta the members are in tension or compression.

Determine the force in members $AF,BF,$ and $BC,$ and state if the members are in tension or compression.
