Question: 5 - 3 7 . Determine the horizontal and vertical components of reaction at A , B , and C of the three - hinged

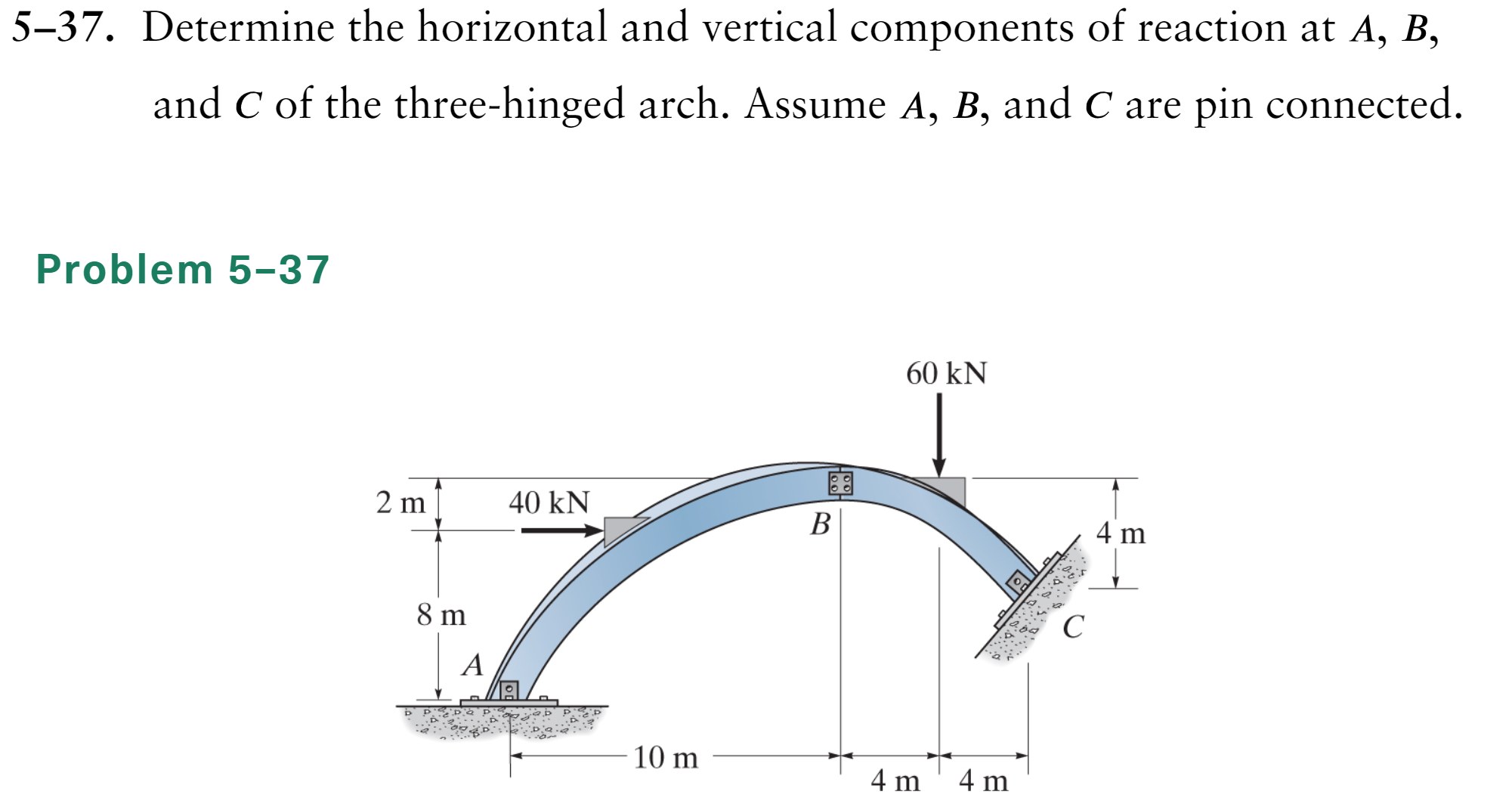

5-37. Determine the horizontal and vertical components of reaction at A,B,and C of the three-hinged arch. Assume A,B, and C are pin connected.
Ax, Ay, Bx,By,Cx,Cy
5 - 3 7 . Determine the horizontal and vertical

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
