Question: 5 - 4 . The structure below supports a concentrated load of F = 4 . 3 kips. Determine the direction and magnitude of the

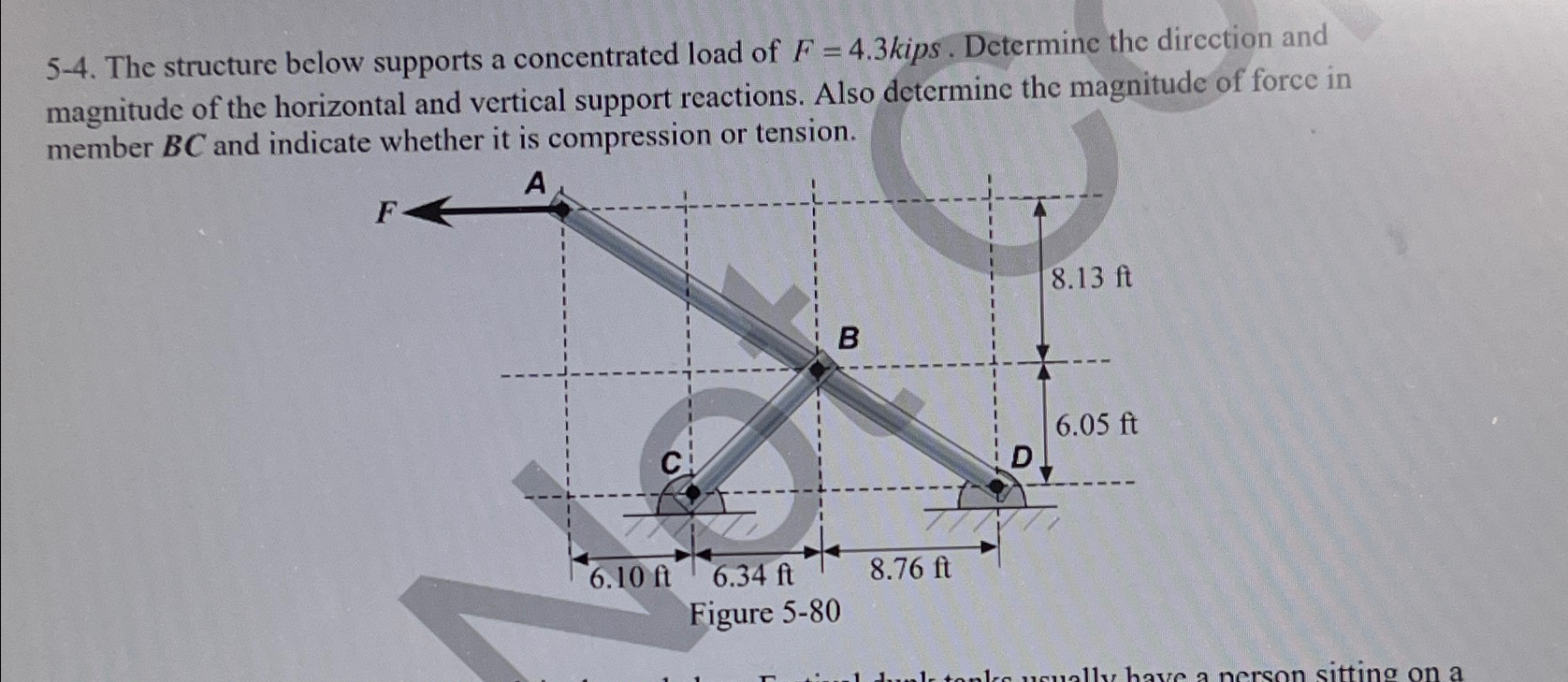

5-4. The structure below supports a concentrated load of F=4.3kips. Determine the direction and magnitude of the horizontal and vertical support reactions. Also determine the magnitude of force in member BC and indicate whether it is compression or tension.
5 - 4 . The structure below supports a

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
