Question: 5 . 5 . Figure 5 . 1 8 shows the part floor plan of an office building using a simple construction system. The floor

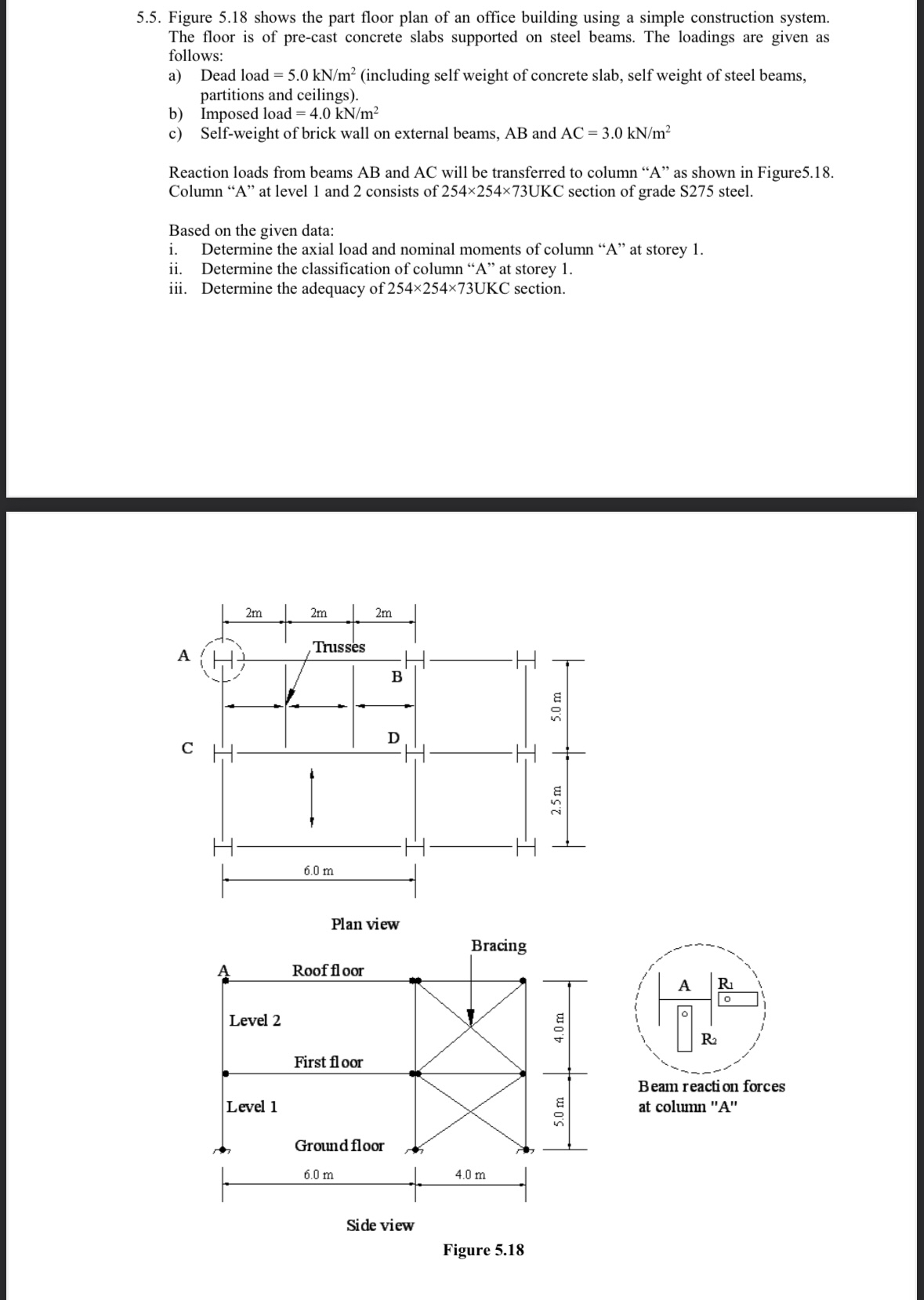

5.5. Figure 5.18 shows the part floor plan of an office building using a simple construction system. The floor is of pre-cast concrete slabs supported on steel beams. The loadings are given as follows:
a) Dead load =5.0kNm2(including self weight of concrete slab, self weight of steel beams, partitions and ceilings).
b) Imposed load =4.0kNm2
c) Self-weight of brick wall on external beams, AB and AC=3.0kNm2
Reaction loads from beams AB and AC will be transferred to column " A " as shown in Figure5.18. Column "A" at level 1 and 2 consists of 25425473 UKC section of grade S275 steel.
Based on the given data:
i. Determine the axial load and nominal moments of column "A" at storey 1.
ii. Determine the classification of column "A" at storey 1.
iii. Determine the adequacy of 25425473 UKC section.
