Question: 5 / 6 9 The right - angle link A B has a clockwise angular velocity of 3 r a d s e c at

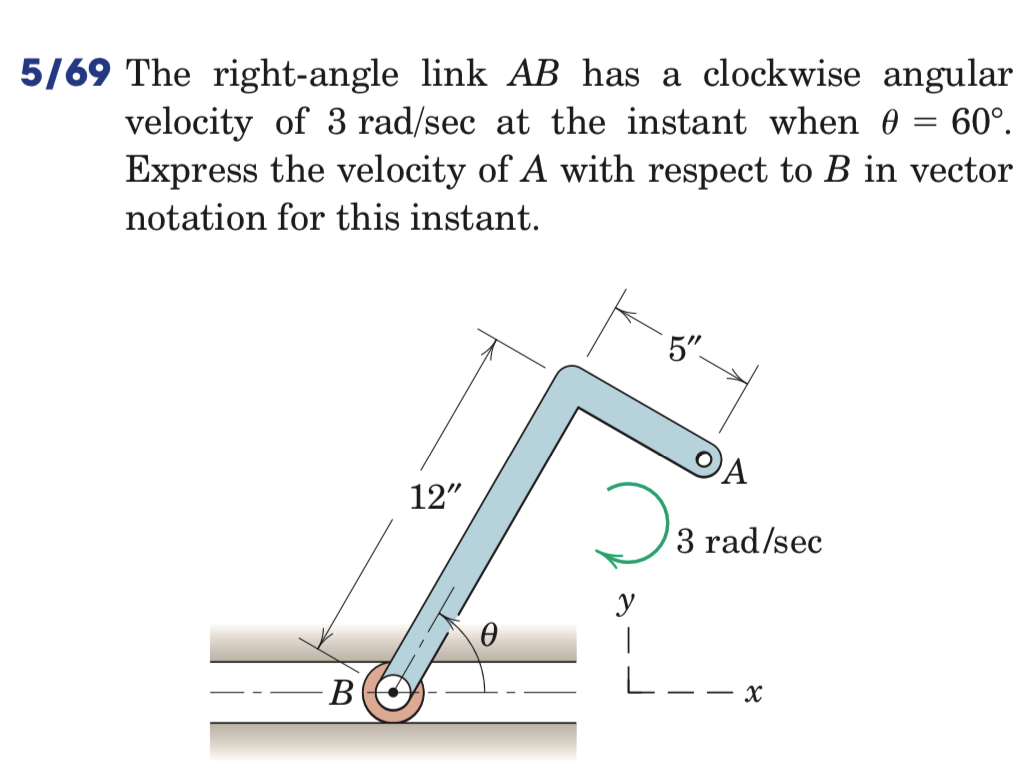

5/69 The right-angle link AB has a clockwise angular velocity of 3radsec at the instant when =60. Express the velocity of A with respect to B in vector notation for this instant.
5 / 6 9 The right - angle link A B has a

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Q:

180 mm; 02 B = 100 mm; 02 C = 180 mm and CD = 270 mm. The crank 01 A rotates clockwise at a uniform speed of 120 r.p.m. The block D moves in vertical guides. Find, by instantaneous centre method, the...

Q:

Note: To simplify calculations, you may use g = 10 m/s in all problems.V =7.5 m/s Questions 2-4 refer to the following figure: B C - NWAVAN D velocity (m/s) 1. An object is thrown horizontally to the...

Q:

6. 7. 8. The lengths of various links of a mechanism, as shown in Fig. 6.32, are: OA = 0.3 m ; AB= 1 m; CD=0.8 m; and A C= CB. Determine, for the given configuration, the velocity of the slider D if...

Q:

First part is below and Second part of the Assignment is on top. Nothing is missing. Please solve it. Thank you. Exploration Physics 7. Perform a percent difference between your calculated...

Q:

The triangular plate ABD has a clockwise angular velocity of 3 rad/sec and link OA has zero angular acceleration for the instant represented. Determine the angular accelerations of plate ABD and link...

Q:

The quarter - circular link A B with small rollers at two ends has a radius of 0 . 8 m ( that is , it is part of a circle of radius 0 . 8 m ) . At the instant shown, roller A has a speed v A = 2 m s...

Q:

The clockwise angular velocity of the link AB is 2 rad/s. Determine the angular velocity of the connecting links BC and CD at the instant shown. C - 4 in.- A WAB = 2 rad/s 90 45 5 in. 45 B D 3 in.

Q:

*12184. At the instant u = 30, the cam rotates with a clockwise angular velocity of u # = 5 rad>s and, angular acceleration of u $ = 6 rad/s2. Determine the magnitudes of the velocity and...

Q:

1. A wheel starts from rest and rotates about its axis with constant angular acceleration. After 6.50 s have elapsed, it has rotated through an angle of 24.0 radians. What is the angular velocity...

Q:

The right-angle link AB has a clockwise angular velocity = 2 rad/sec when in the position shown. Determine the velocity of B with respect to A for this instant. A y 30 12" L 5" B
