Question: 5 / 7 8 For the instant represented, when crank OA passes the horizontal position, determine the velocity of the center ( G

5/78

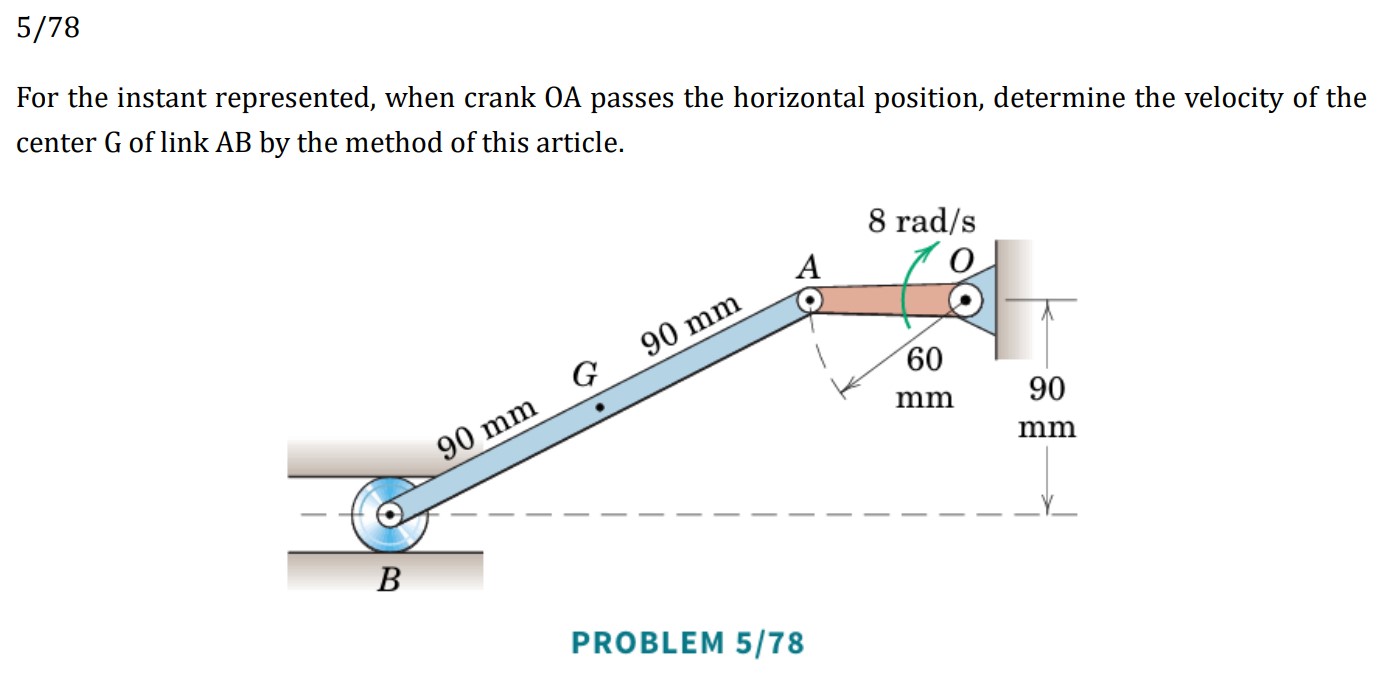

For the instant represented, when crank OA passes the horizontal position, determine the velocity of the center \( G \) of link \( A B \) by the method of this article.
PROBLEM 5/78
5 / 7 8 For the instant represented, when crank

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
