Question: 5 . a ( 1 5 points ) Separate the transfer function into the standard Bode plot elements of constant, first order pole, integrator, differentiator,

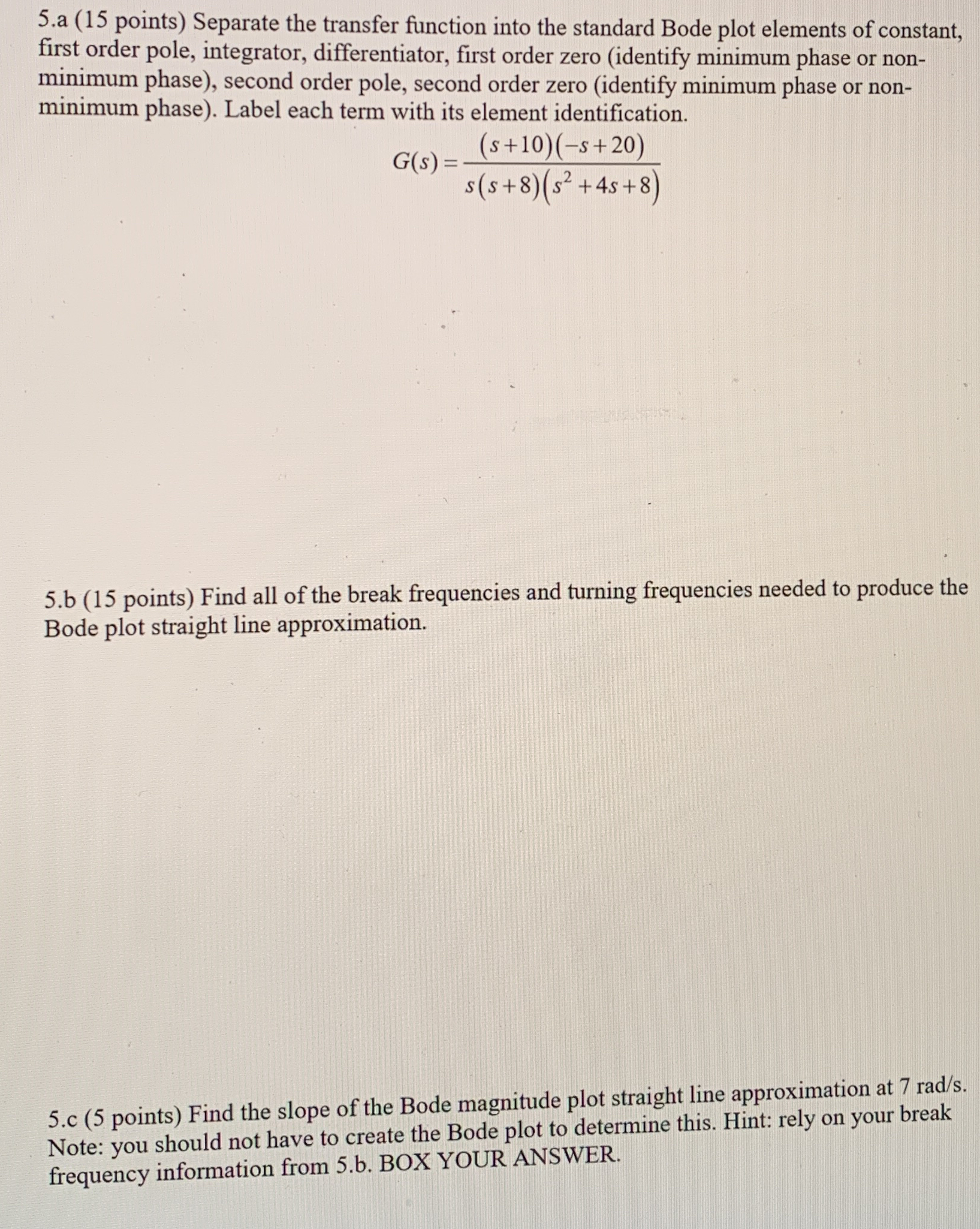

5.a (15 points) Separate the transfer function into the standard Bode plot elements of constant, first order pole, integrator, differentiator, first order zero (identify minimum phase or nonminimum phase), second order pole, second order zero (identify minimum phase or nonminimum phase). Label each term with its element identification.
G(s)=(s+10)(-s+20)s(s+8)(s2+4s+8)
5.b (15 points) Find all of the break frequencies and turning frequencies needed to produce the Bode plot straight line approximation.
5.c (5 points) Find the slope of the Bode magnitude plot straight line approximation at 7rads. Note: you should not have to create the Bode plot to determine this. Hint: rely on your break frequency information from 5.b. BOX YOUR ANSWER.
