Question: ( 5 . ) a ) A symmetric thin - walled cross section is subjected to bending and shear. Draw the distribution of shearing stresses

(5 .)

)

A symmetric thin

-

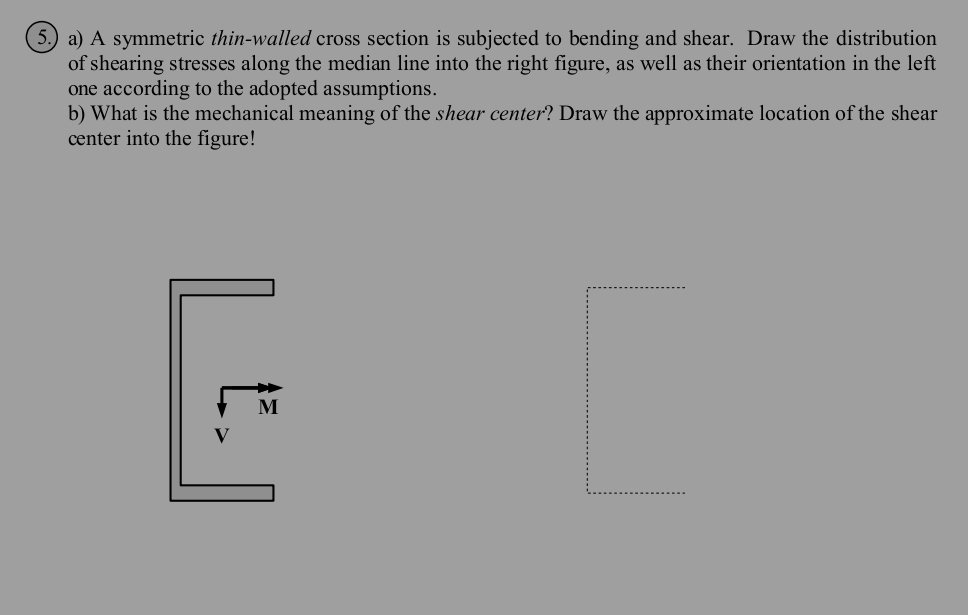

walled cross section is subjected to bending and shear. Draw the distribution of shearing stresses along the median line into the right figure, as well as their orientation in the left one according to the adopted assumptions.

)

What is the mechanical meaning of the shear center? Draw the approximate location of the shear center into the figure!

( 5 . ) a ) A symmetric thin - walled cross

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
