Question: 5) a) Use Kirchoff's laws to write a loop equation in terms of the currents, resistor and emf values shown below. Start the loop at

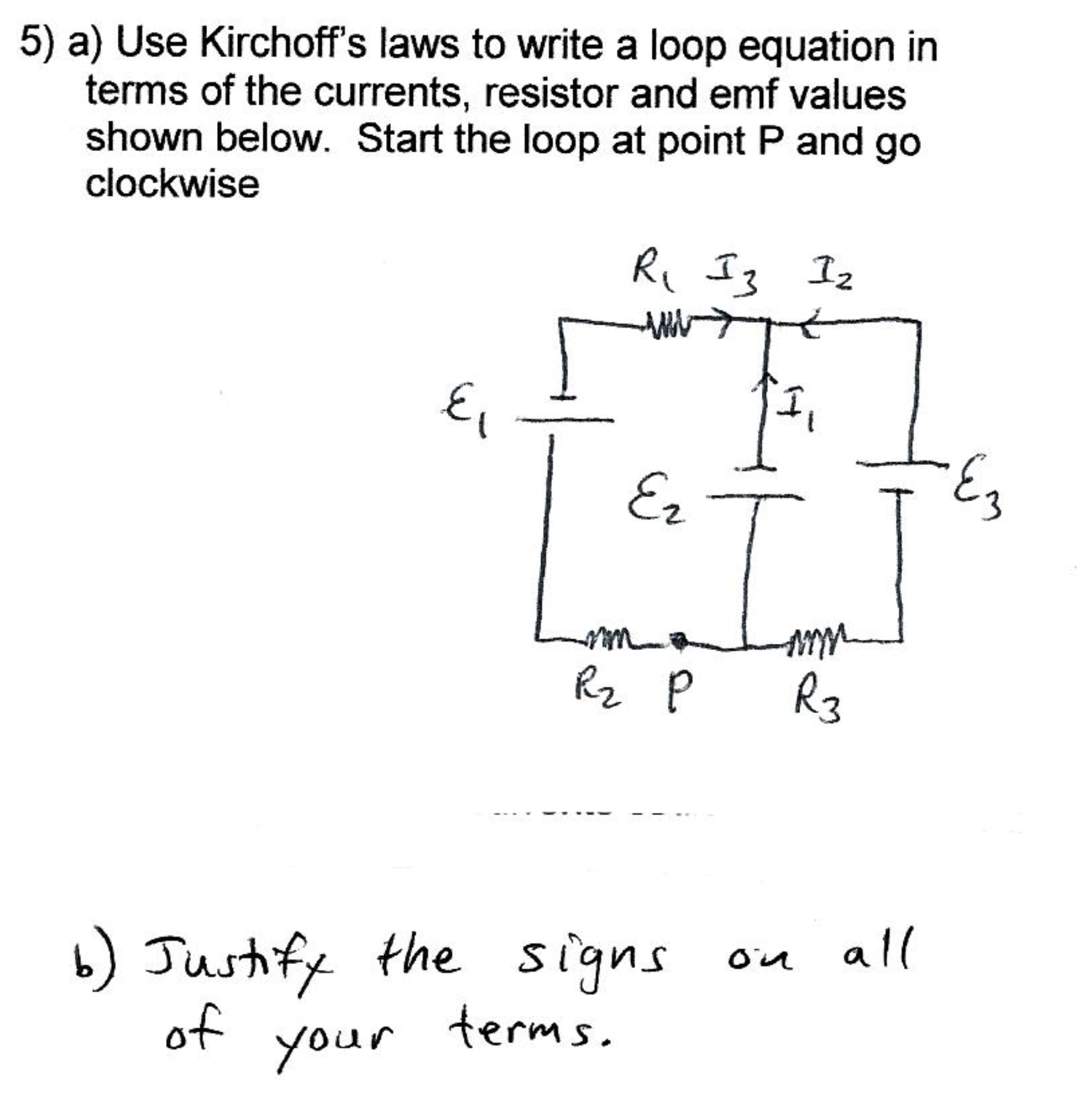

5) a) Use Kirchoff's laws to write a loop equation in terms of the currents, resistor and emf values shown below. Start the loop at point P and go clockwise R J 3 12 Ez E3 RZ P R3 b) Justify the signs on all of your terms

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
