Question: # 5 Consider the compound beam shown. Suppose that P 1 = 1 0 0 0 N , P 2 = 1 6 0 0

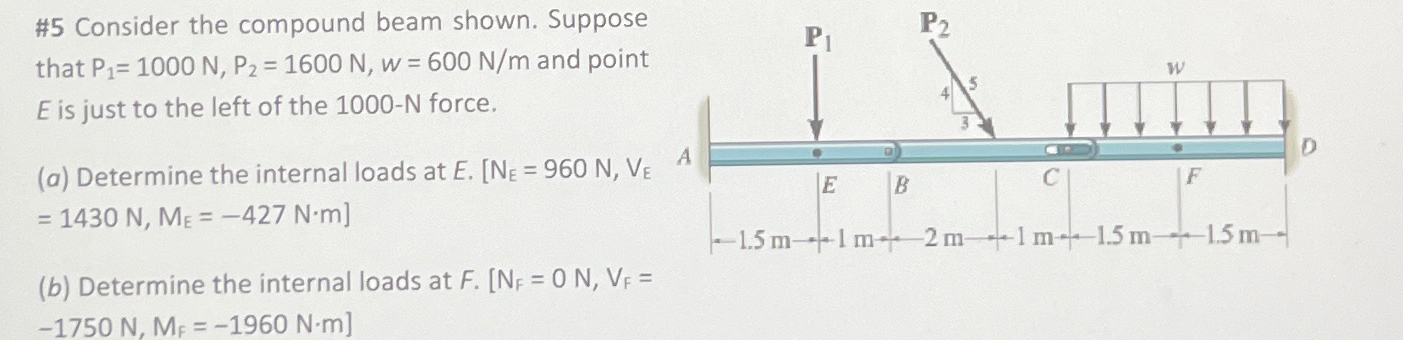

#5 Consider the compound beam shown. Suppose that P1=1000N,P2=1600N,w=600Nm and point E is just to the left of the 1000-N force.
(a) Determine the internal loads at E.=1430N,ME=-427N*m]
(b) Determine the internal loads at [:-1750(N),MF=-1960(N)*m}
# 5 Consider the compound beam shown. Suppose

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
