Question: 5. Find the time delay for the delay subroutine shown below if the system has an AVR with a frequency of 8 MHz LDI R16,

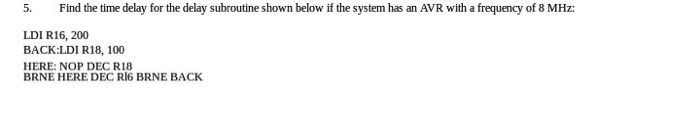

5. Find the time delay for the delay subroutine shown below

5. Find the time delay for the delay subroutine shown below if the system has an AVR with a frequency of 8 MHz LDI R16, 200 BACK:LDIR 18, i00 HERE: NOP DEC R18 BRNE HERE DEC RI6 BRNE BACK

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Databases Questions!

Q:

32) Find the time delay for the delay subroutine shown below if the system has an AVR with a frequency of 8 MHz: LDI R16, 200 BACK: LDI R18, 100 HERE: NOP DEC R18 BRNE HERE DEC R16 BRNE BACK

Q:

Find the time delay for the delay subroutine shown below if the system has an AVR with a frequency of 8MHz: LDI R16, 200 BACK: LDI R18, 100 HERE: NOP DEC R18 BRNE HERE DEC R16 BRNE BACK

Q:

Find the time delay for the delay subroutine shown below if the system has an AVR with a frequency of 4MHz: Do not use comma separator in big numbers. LDI R16, 100 SUB R20, R16 BACK:LDI R17, 110 SUB...

Q:

Find the time delay for the delay subroutine shown below if the system has an AVR with a frequency of 4MHz: Do not use comma separator in big numbers. LDI R16, 100 SUB R20, R16 BACK:LDI R17, 110 SUB...

Q:

Before solving the question, PLEASE MAKE SURE YOU HAVE a STRONG UNDERSTANDING OF the MATERIAL RELATED TO THIS PROBLEM AND DO NOT POST a SOLUTION UNLESS YOU ARE FULLY SURE ABOUT THE ANSWER. Show...

Q:

Find the time delay for the delay subroutine shown below if the system has an AVR with a frequency of 10MHz: If answer is not integer, represent it truncating to 3 digits after the decimal point. Do...

Q:

Find the time delay for the delay subroutine shown below if the system has an AVR with a frequency of 10MHz: If answer is not integer, represent it truncating to 3 digits after the decimal point. Do...

Q:

Question 1: Find the time delay for the delay subroutine shown below if the system has an 8051 with frequency of 12 MHz: delay: mov 13, #100 back: mov r2, #200 again: mov r5, #250 here: nop nop djnz...

Q:

. Find the time delay for the delay subroutine shown below if the system has a PIC 18 with a frequency of 4 MHz: MOVLW DI 200 1 MOVWF REGA BACK MOVLW D' 250 1 MOVWF REGB HERE NOP DECF REGB BNZ HERE...

Q:

Computer Engineering 33. Find the time delay for the delay subroutine shown to HERE the right, if the system has an 8051 with frequency of 16 MHz. MOV R3 , #200 NOP NOP NOP DJNZ R3, HERE RET 2 34....
