Question: 5 . For the structure shown below, calculate the force in cable ( B C ) and the reactions at pin (

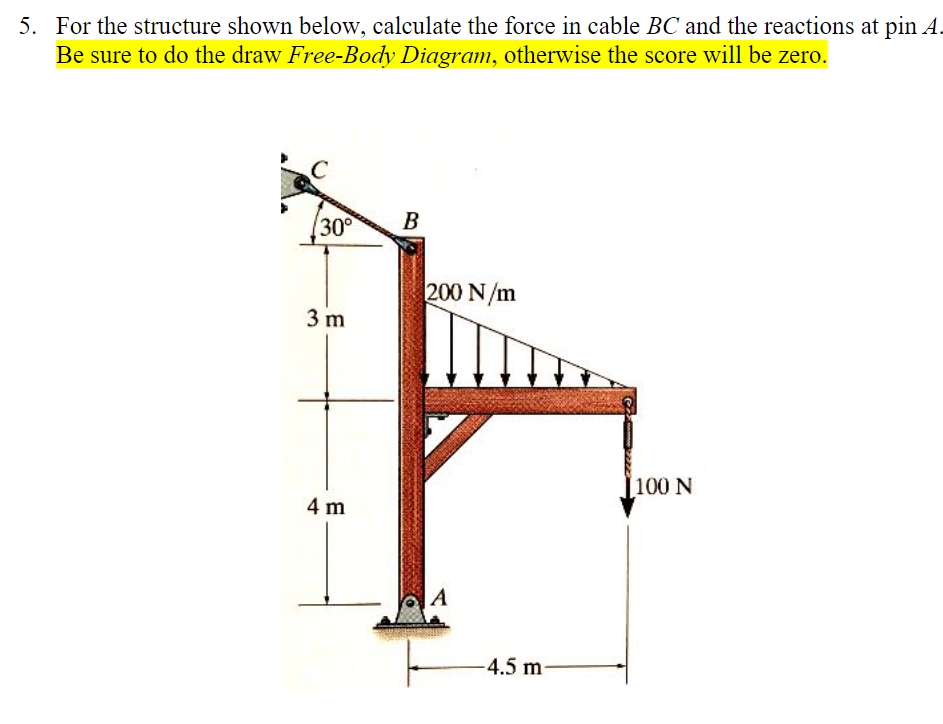

5. For the structure shown below, calculate the force in cable \( B C \) and the reactions at pin \( A \). Be sure to do the draw Free-Body Diagram, otherwise the score will be zero.
5 . For the structure shown below, calculate the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Q:

For the structure shown below, calculate the force in cable B C and the reactions at pin A . Be sure to do the draw Free - Body Diagram, otherwise the score will be zero.
