Question: 5. Given a boolean function f with the following truth table. What's the k-map of DNF ? (10pts) What's the simplest function from DNF using

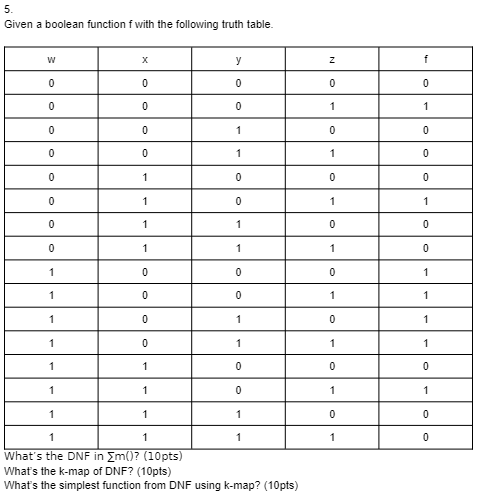

5. Given a boolean function f with the following truth table.

5. Given a boolean function f with the following truth table. What's the k-map of DNF ? (10pts) What's the simplest function from DNF using k-map? (10pts)

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Databases Questions!

Given a boolean function f with the following truth table. vvnat s the K-map or UIVr? ( IUPss) What's the simplest function from DNF using k-map? (10pts)

Q. Given a boolean function f with the following truth table. What's the k-map of DNF? What's the simplest function from DNF using k-map

1a. Given the following Truth Table form the (a) K-Map and (b) simplified Boolean expression. Inputs Output A B Y 0 0 0 0 1 1 1 0 1 1 1 1 b. Simplify the Boolean function F(x, y, z) = (0,2,4,5) using...

1. Given the basic identities of Boolean algebra, prove that: AB+BC+AC=AB+BC+ AC 2. Given the basic identities of Boolean algebra, prove that: ABC+BCD+BC+CD=B+ CD 3. Use only NAND gates to draw the...

Given the Boolean function F= xy'z + x'y'z + w'xy + wx'y + wxy a) Obtain the truth table of the function. b) Draw the logic diagram using the original Boolean expression. c) Simplify the function to...

Done Computer Architecture_Assignme... 7 Question 1: [6 marks] Given the Boolean function: F = xyz + x'y'z + xyz .. List the truth table of the function .Draw the logic diagram using the original...

Convert the following decimal numbers to the indicated bases: ( a ) 7 5 6 2 . 4 5 to octal ( b ) 1 9 3 8 . 2 5 7 to hexadecimal ( c ) 1 7 5 . 1 7 5 to binary Show the signals of the outputs F and G (...

How do I solve these ? 1. Represent the decimal number 347 in a) BCD b) ASCII (assume 8 bit per-character representation, where the MSB is zero) 2. Simplify, using Boolean algebra, express as a...

Questions 1. Given the Boolean function Let F=2.1.+2.9.2+2-y. a. List the truth table for the function b. Draw the logic diagram using the original Boolean expression. (Use Digital) C. Simplify the...

He asked us to do the circuit diagrams on Digital https://github.com/hneemann/Digital 1) Given the Boolean function F-x- y+2 + x-y+2 + x-y+2 a. List the truth table for the function b. Draw the logic...
