Question: ( 5 points ) Given: V 1 = 0 . 1 V , R 1 = 1 k , R 2 = 3 . 3

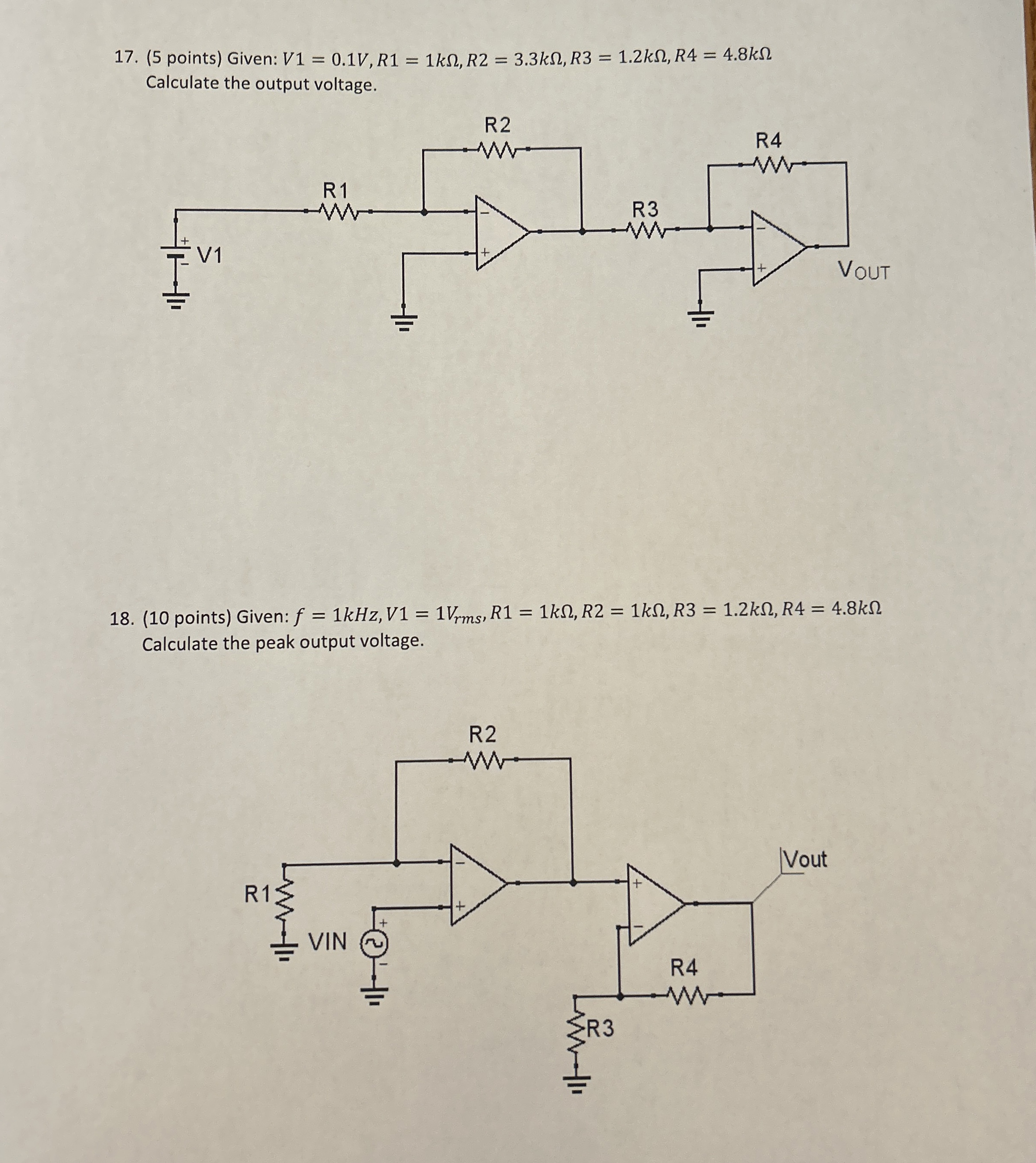

(5 points) Given: V1=0.1V,R1=1k,R2=3.3k,R3=1.2k,R4=4.8k Calculate the output voltage.
(10 points) Given: f=1kHz,V1=1Vrms,R1=1k,R2=1k,R3=1.2k,R4=4.8k Calculate the peak output voltage.
( 5 points ) Given: V 1 = 0 . 1 V , R 1 = 1 k , R

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
