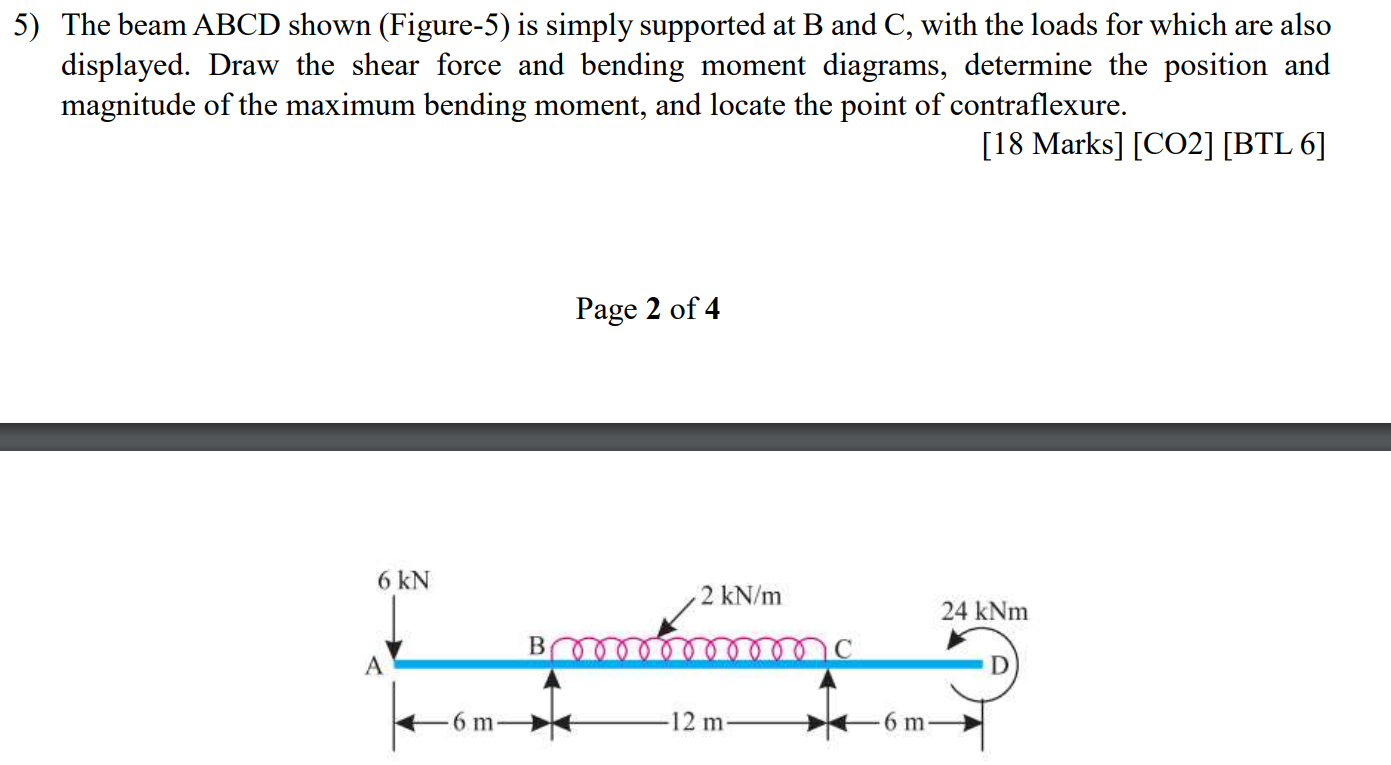

$5)$ The beam $\backslash ($ A B C D $\backslash )$ shown $($Figure$-5)$ is simply supported at $\backslash ($ B $\backslash )$ and $\backslash ($ C $\backslash ),$ with the loads for which are also displayed. Draw the shear force and bending moment diagrams, determine the position and magnitude of the maximum bending moment, and locate the point of contraflexure.

$[18$ Marks$][$CO$2][$BTL $6]$

Page $2$ of $4$
