Question: 5.3-8. Sizing a Flow Nozzle. A flow nozzle is to be sized for use in a pipe having an internal diameter of 1.25 in. to

5.3-8. Sizing a Flow Nozzle. A flow nozzle is to be

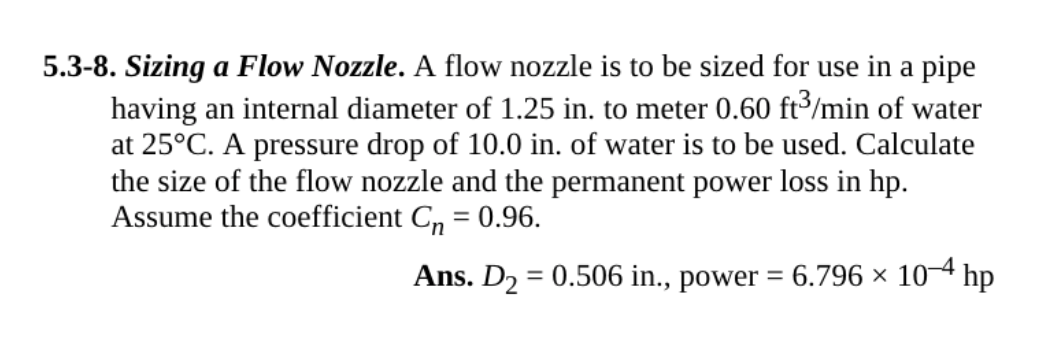

5.3-8. Sizing a Flow Nozzle. A flow nozzle is to be sized for use in a pipe having an internal diameter of 1.25 in. to meter 0.60ft3/min of water at 25C. A pressure drop of 10.0 in. of water is to be used. Calculate the size of the flow nozzle and the permanent power loss in hp. Assume the coefficient Cn=0.96. Ans. D2=0.506 in., power =6.796104hp

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
