Question: 6 . 1 3 Determine the force in each member of the roof truss shown. State whether each member is in tension ( T )

6.13 Determine the force in each member of the roof truss shown. State whether each member is in tension (T) or compression (C).

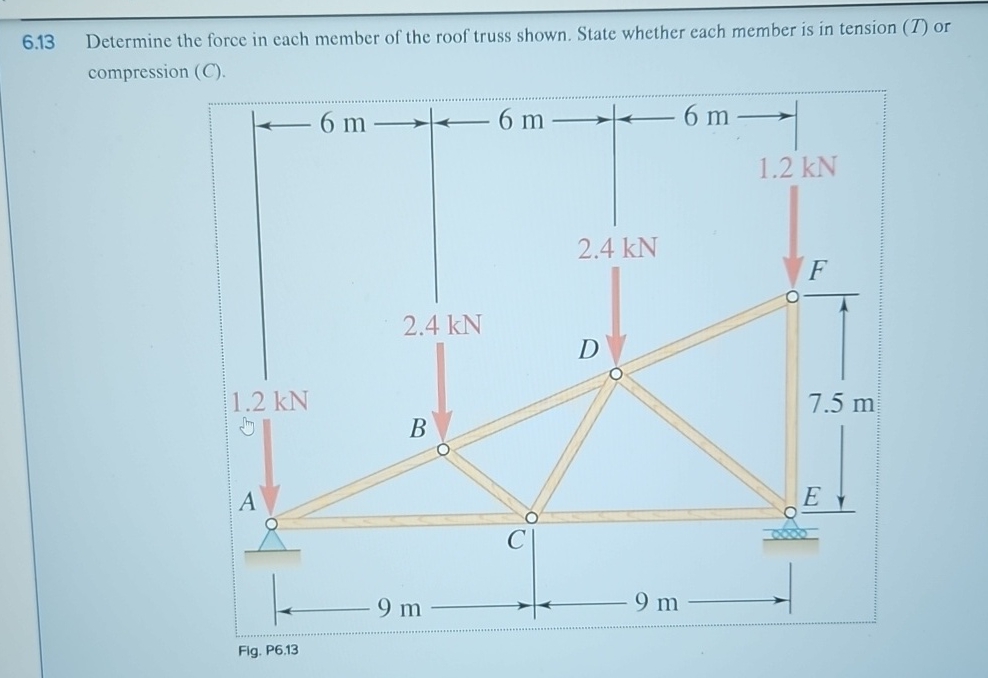

Fig. P6.13
6 . 1 3 Determine the force in each member of the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
