Question: 6 . 1 8 For the beam and loading shown, determine the minimum required width b , knowing that for the grade of timber used,

6.18 For the beam and loading shown, determine the minimum required width b, knowing that for the grade of timber used, all=12MPa and all=825kPa.

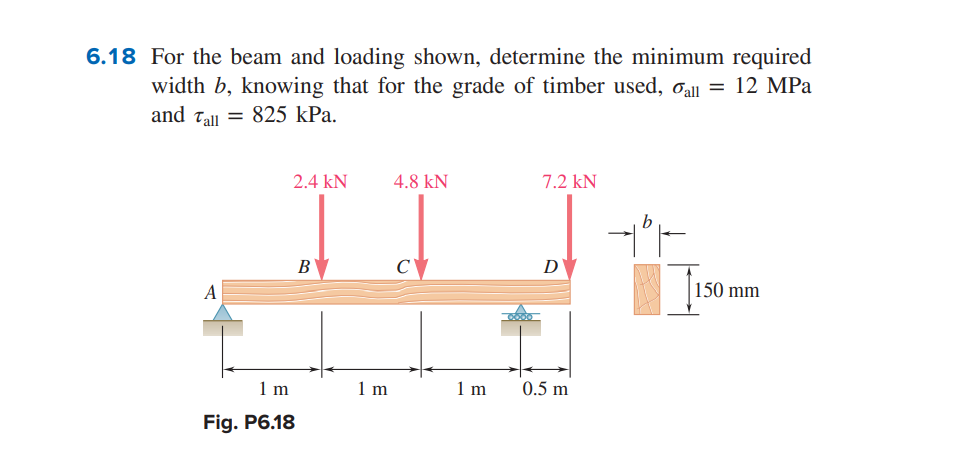

6.18 For the beam and loading shown, determine the minimum required

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Q:

For the beam and loading shown, determine the minimum required width b, knowing that for the grade of timber used, all = 12 MPa and Tall = 832 kPa. (Round the final answer to two decimal places.) 2.4...

Q:

6.18 For the beam and loading shown, determine the minimum required width b, knowing that for the grade of timber used, all = 12 MPa and Tall 825 kPa. Tall= 2.4 kN 4.8 kN 7.2 kN B CV D 150 mm A 1 m...

Q:

2-) a-) For the beam and loading shown, determine the minimum required width 'b', knowing that for the grade of timber used, allowable = 12 MPa. 2.4 kN 4.8 kN 7.2 kN b B C D A E 150 mm 0000 -1 m 1 m...

Q:

(2) For the beam and loading shown, determine the minimum required width b, knowing that for the grade of timber used, all = 12 MPa and T all = 825 kPa 2.4 kN 4.8 kN 7.2 kN B C D E 150 mm m- 1 m 1 m...

Q:

Q 6 ) For the beam and loading shown, determine the minimum required width b , knowing that for the grade of timber used, a l l = 1 2 MPa and a l l = 8 2 5 kPa. Overdue Date: 1 9 / 1 1 / 2 0 2 4

Q:

For the beam and loading shown, determine the minimum required width b , knowing that for the grade of timber used, a l l = 1 0 MPa and a l l = 8 2 5 kPa.

Q:

QUESTION 5 For the beam and loading shown, determine the minimum required depth h , knowing that for the grade of timber used, a l l = 1 2 MPa and a l l = 0 . 9 MPa.

Q:

Problem # 2 : ( need to show all calculations in detail ) . ( 5 0 % ) For the beam and loading shown: Draw the shear and bending - moment diagrams ( need to show all calculations in detail ) ....

Q:

Question 5 In Figure 5 , for the beam and loading shown, given that a l l = 2 1 MPa and a l l = 4 0 0 kPa of the the grade of material used, ( a ) Determine the reaction forces at support A and B...

Q:

For the beam and loading shown, determine ( a ) the equation of the elastic curve for portion AB of the beam, ( b ) the deflection at midspan, ( c ) the slope at B NOTE 1 : All problems in Homework #...
