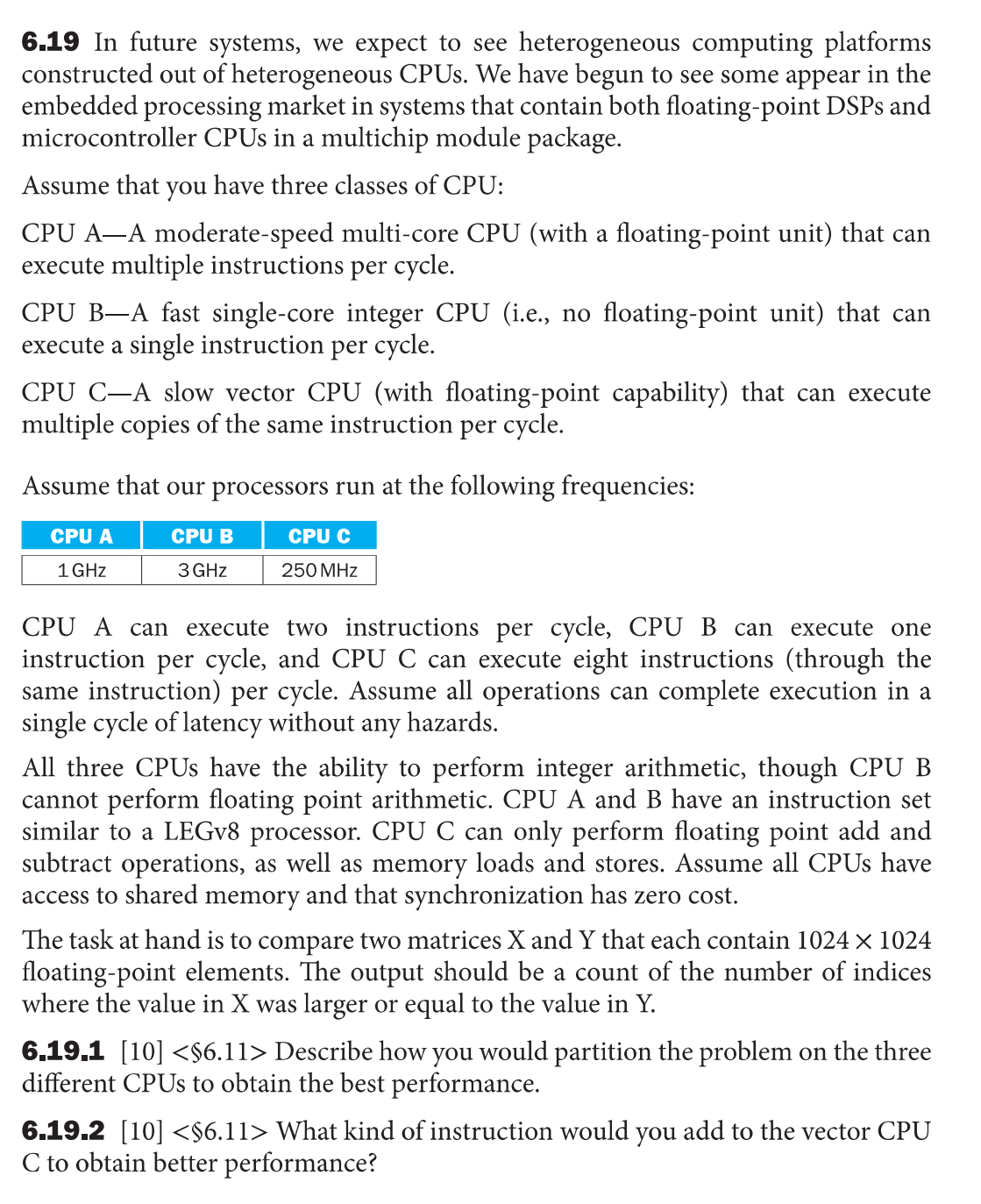

$6\mathrm{.}19$ In future systems, we expect to see heterogeneous computing platforms

constructed out of heterogeneous CPUs. We have begun to see some appear in the

embedded processing market in systems that contain both floating$-$point DSPs and

microcontroller CPUs in a multichip module package.

Assume that you have three classes of CPU:

CPU A$-$A moderate$-$speed multi$-$core CPU $($with a floating$-$point unit$)$ that can

execute multiple instructions per cycle.

CPU B$-$A fast single$-$core integer CPU $($i$.$e$.,$ no floating$-$point unit$)$ that can

execute a single instruction per cycle.

CPU C$-$A slow vector CPU $($with floating$-$point capability$)$ that can execute

multiple copies of the same instruction per cycle.

Assume that our processors run at the following frequencies:

CPU A can execute two instructions per cycle, CPU B can execute one

instruction per cycle, and CPU C can execute eight instructions $($through the

same instruction$)$ per cycle. Assume all operations can complete execution in a

single cycle of latency without any hazards.

All three CPUs have the ability to perform integer arithmetic, though CPU B

cannot perform floating point arithmetic. CPU A and B have an instruction set

similar to a LEGv$8$ processor. CPU C can only perform floating point add and

subtract operations, as well as memory loads and stores. Assume all CPUs have

access to shared memory and that synchronization has zero cost.

The task at hand is to compare two matrices $x$ and $Y$ that each contain $10241024$

floating$-$point elements. The output should be a count of the number of indices

where the value in $x$ was larger or equal to the value in $Y.$

$6\mathrm{.}19\mathrm{.}1[10]$$$6\mathrm{.}11>$ Describe how you would partition the problem on the three

different CPUs to obtain the best performance.

$6\mathrm{.}19\mathrm{.}2[10]$$$6\mathrm{.}11>$ What kind of instruction would you add to the vector CPU

$C$ to obtain better performance?
