Question: 6 . 2 . Draw the node diagram and perform the CPM computations for the schedule shown. Find the duration and mark the critical path.

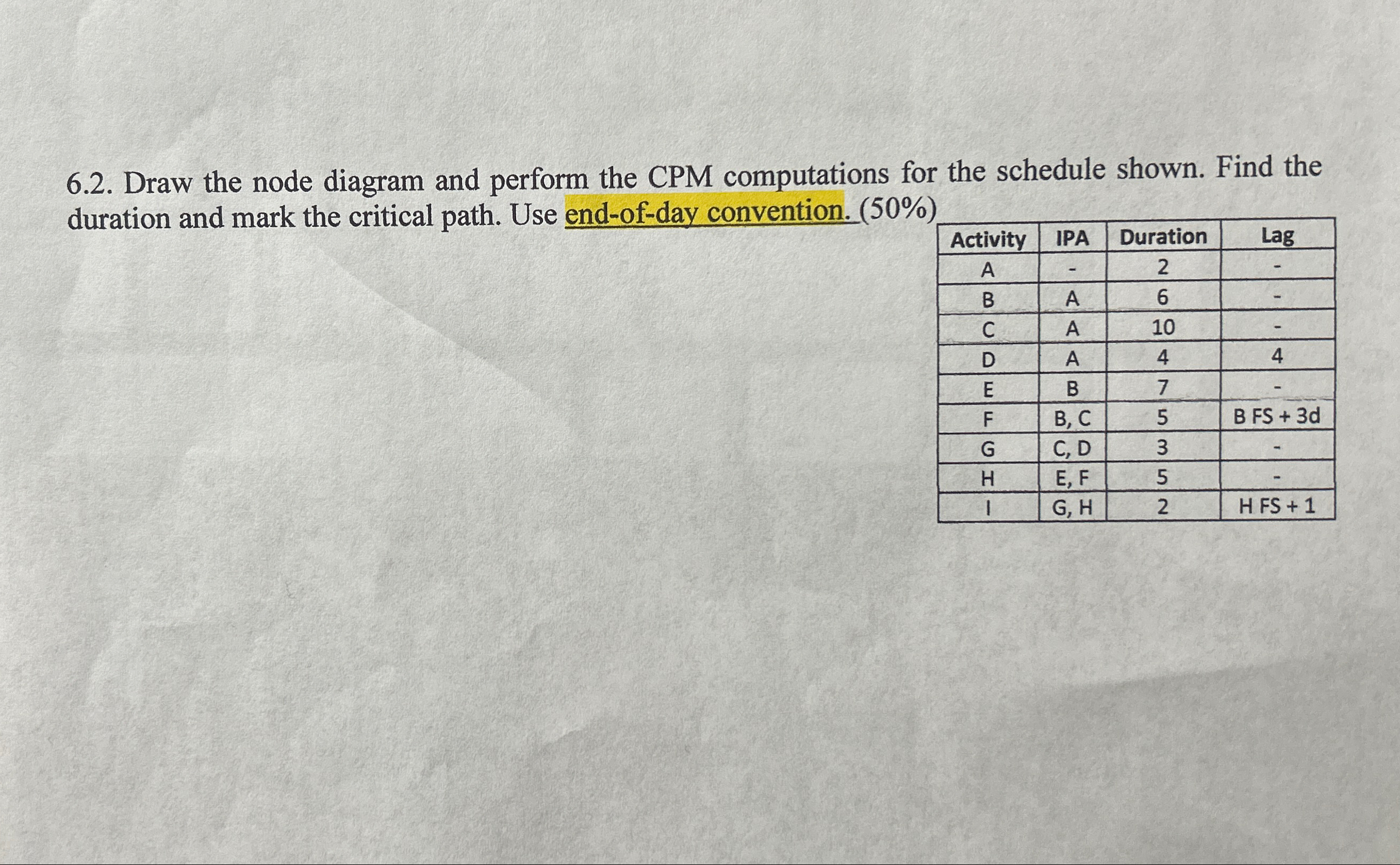

6.2. Draw the node diagram and perform the CPM computations for the schedule shown. Find the duration and mark the critical path. Use end-of-day convention. (50%)
\table[[Activity,IPA,Duration,Lag],[A,-,2,-],[B,A,6,-],[C,A,10,-],[D,A,4,4],[E,B,7,-],[F,B, C,5,B FS +3d],[G,C, D,3,-],[H,E, F,5,-],[I,G, H,2,H FS +1]]
6 . 2 . Draw the node diagram and perform the CPM

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
