Question: 6 . 3 3 For the given loading, determine the zero - force members in each of the two trusses shown. Fig. P 6 .

6.33 For the given loading, determine the zero-force members in each of the two trusses shown.

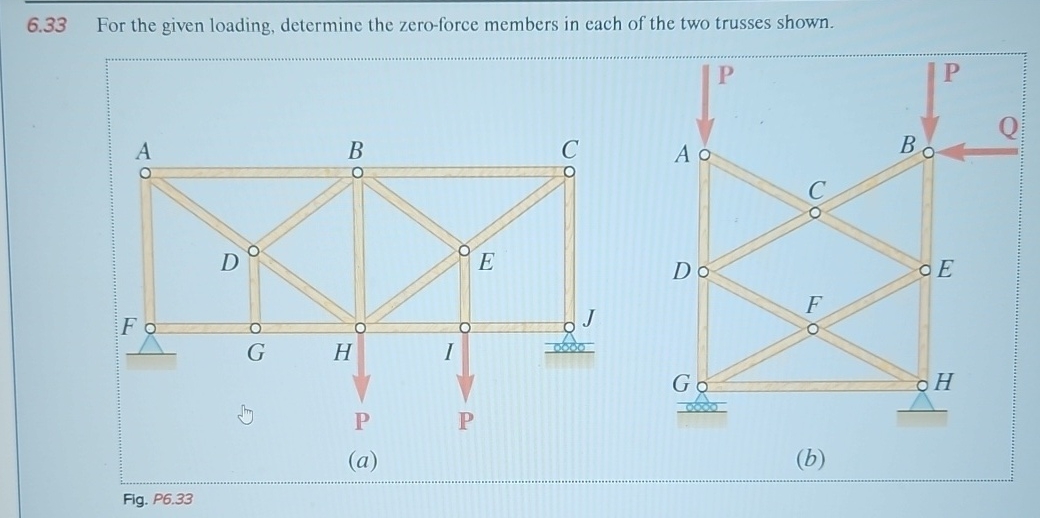

Fig. P6.33
6 . 3 3 For the given loading, determine the zero

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Q:

For the given loading, determine the zero force members in the trusses shown
