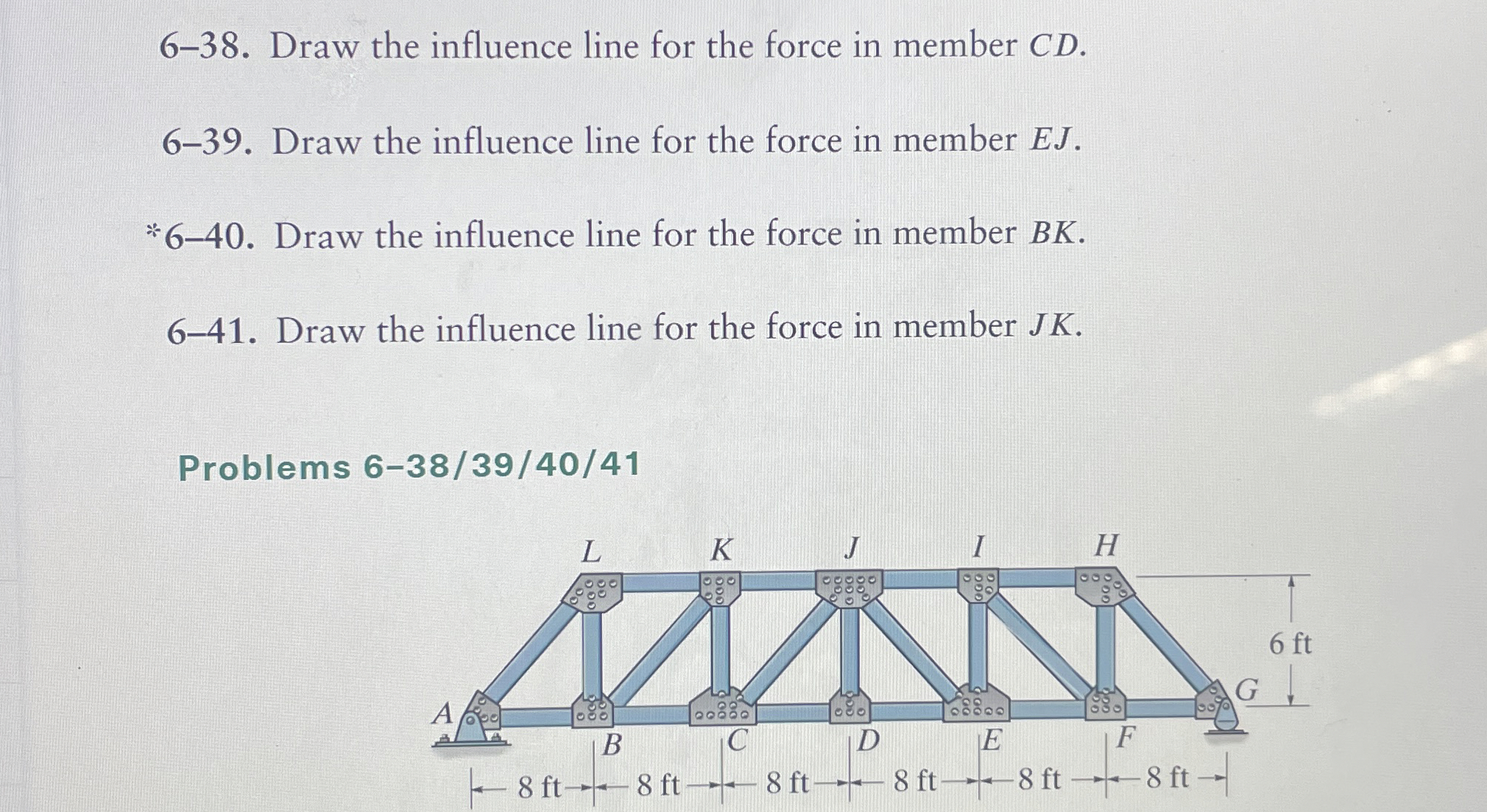

Question: 6 - 3 8 . Draw the influence line for the force in member C D . 6 - 3 9 . Draw the influence

6-38. Draw the influence line for the force in member CD.
6-39. Draw the influence line for the force in member EJ.
*6-40. Draw the influence line for the force in member BK.
6-41. Draw the influence line for the force in member JK.
Problems 6-38/39/40/41
6 - 3 8 . Draw the influence line for the force

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock

To draw the influence lines for the forces in truss members CD EJ BK and JK follow these steps Well ... View full answer
