Question: * 6 - 4 0 . Determine the force in members C D , C F , and C G and state if these members

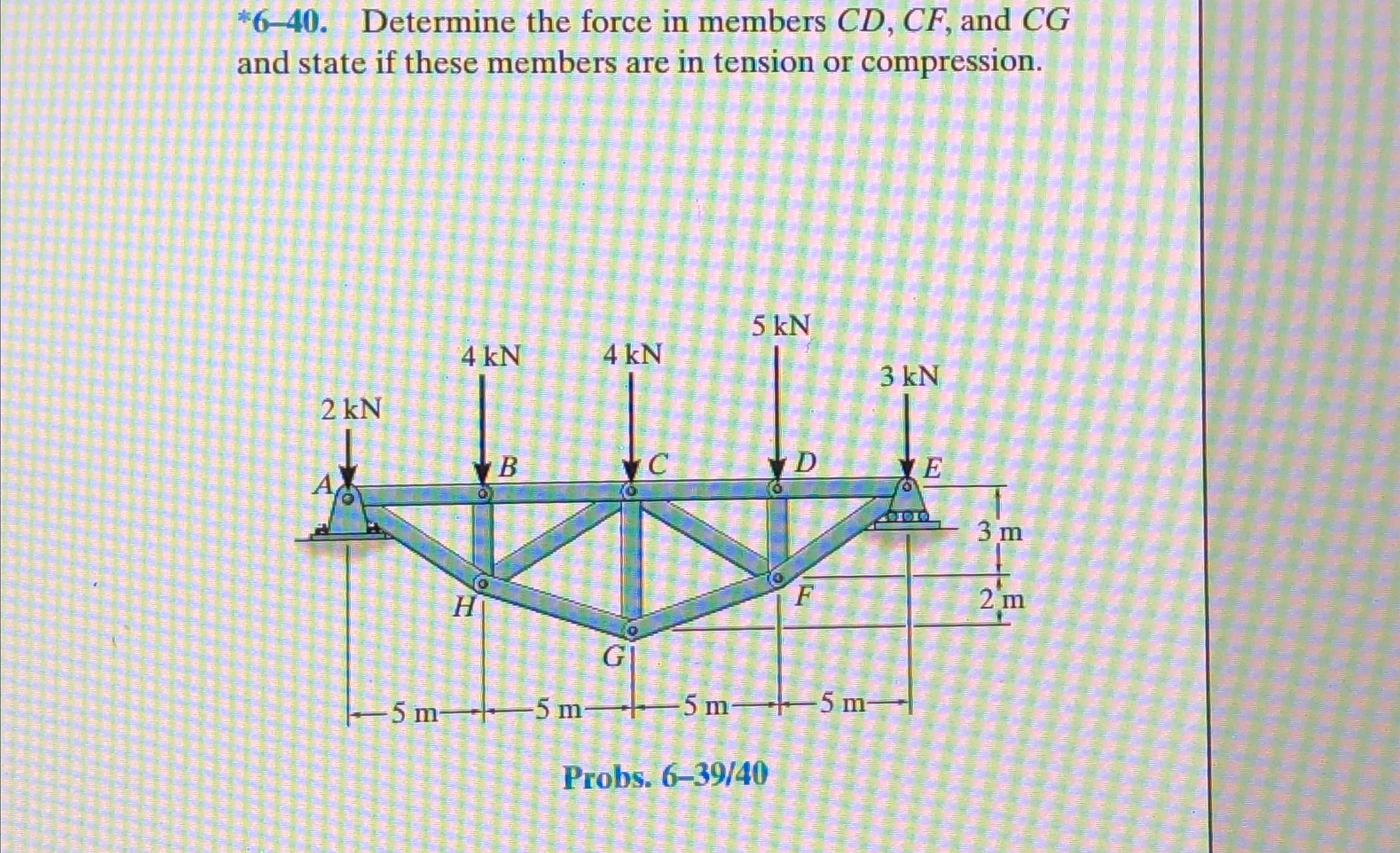

*6-40. Determine the force in members CD,CF, and CG and state if these members are in tension or compression.
* 6 - 4 0 . Determine the force in members C D ,

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
