Question: * 6 - 4 8 . Draw the influence line for the force in member BC of the Warren truss. Indicate numerical values for the

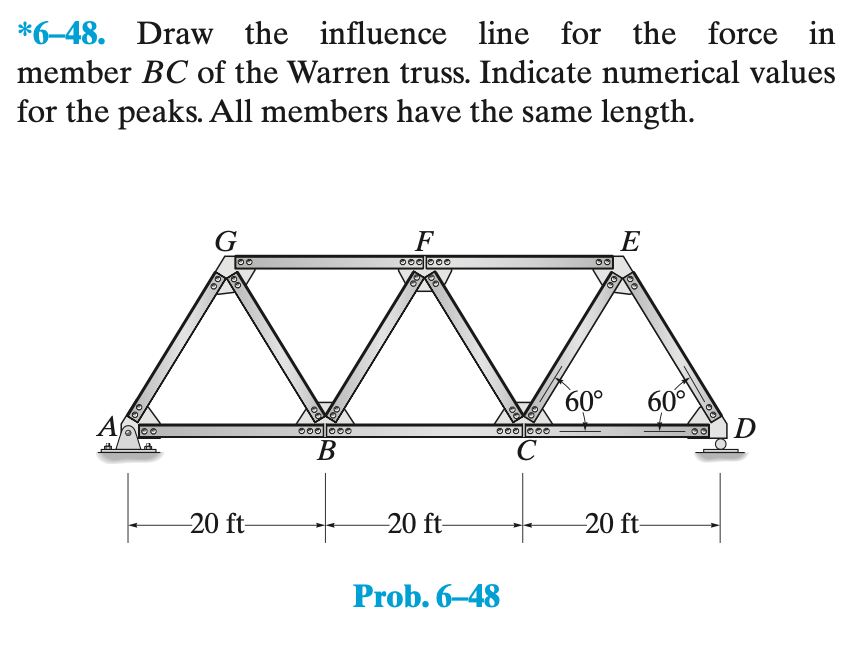

*6-48. Draw the influence line for the force in member BC of the Warren truss. Indicate numerical values for the peaks. All members have the same length.
* 6 - 4 8 . Draw the influence line for the force

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Civil Engineering Questions!

Q:

Draw the influence line for the force in member BC of the Warren truss. Indicate numerical values for the peaks. All members have the same length. 60 60 E200t201- -20 ft- -20 ft- -20 ft-

Q:

Draw the influence line for the force in member BF of the Warren truss. Indicate numerical values for the peaks. All members have the same length. -20 ft- -20 ft- -20 ft-

Q:

Draw the influence line for the force in member FE of the Warren truss. Indicate numerical values for the peaks. All members have the same length. 60 60 -20 ft- -20 ft- -20 ft-
