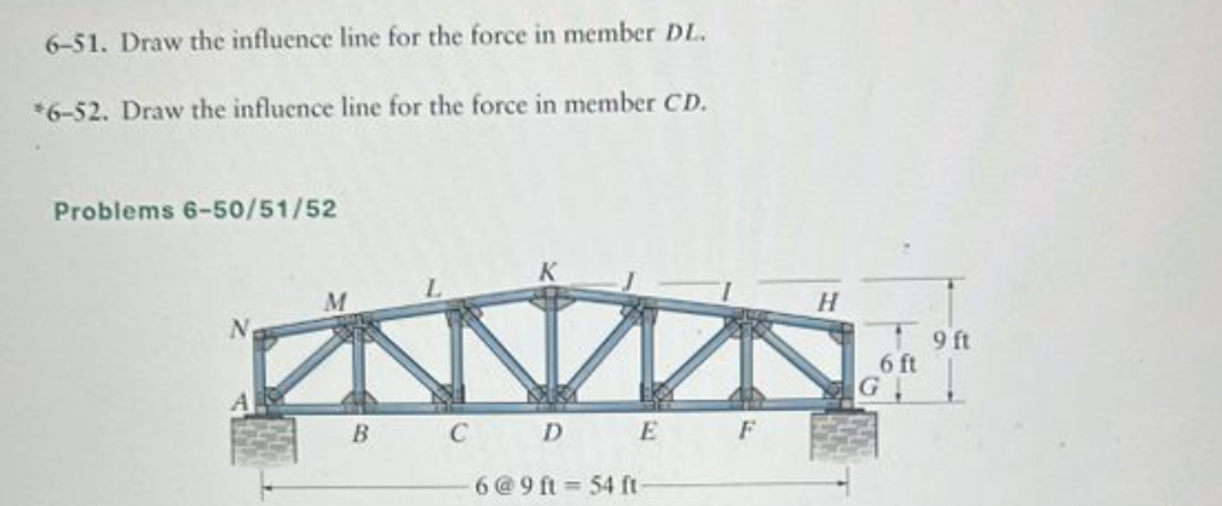

Question: 6 - 5 1 . Draw the influence line for the force in member ( D L ) . * 6 - 5

6-51. Draw the influence line for the force in member \( D L \).
*6-52. Draw the influence line for the force in member \( C D \).
6 - 5 1 . Draw the influence line for the force

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
