Question: * 6 - 5 2 . Draw the influence line for the force in member DE , then determine the maximum live force ( tension

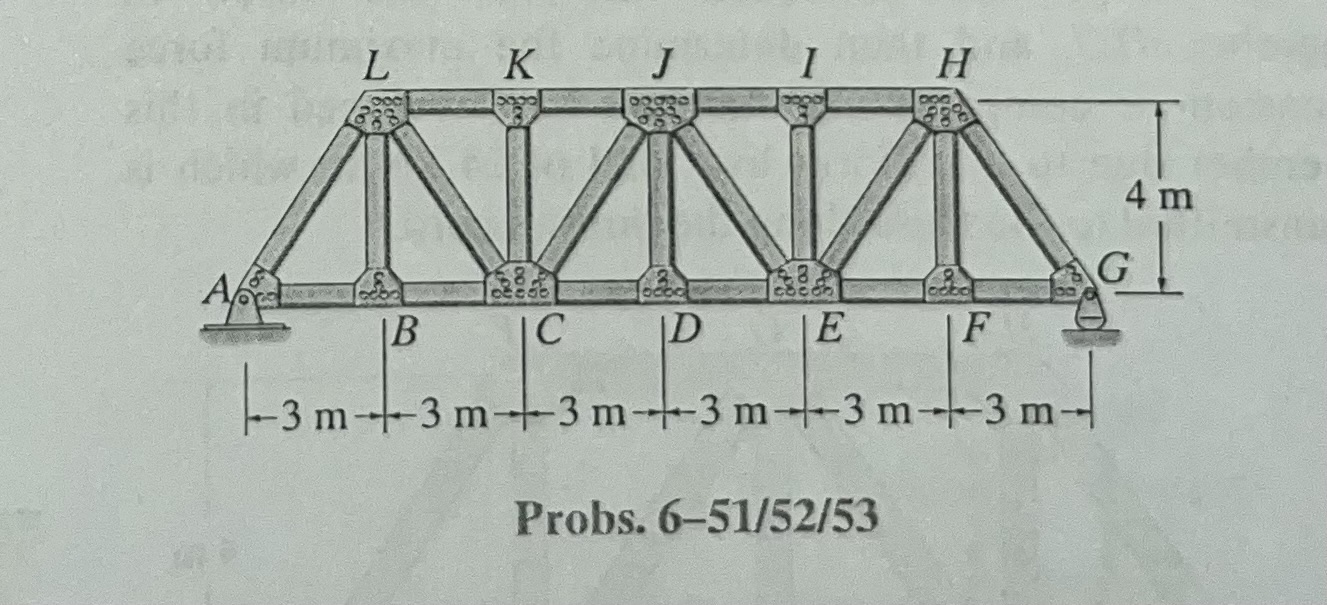

*6-52. Draw the influence line for the force in member
DE, then determine the maximum live force (tension or compression) that can be developed in this member due to a uniform live load of 3 kN/m that acts on the bridge deck along the bottom cord of the truss.
* 6 - 5 2 . Draw the influence line for the force

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
