Question: 6 - 6 4 . Three separate ropes are used to support the 5 0 - kg mass. Draw a free body diagram of the

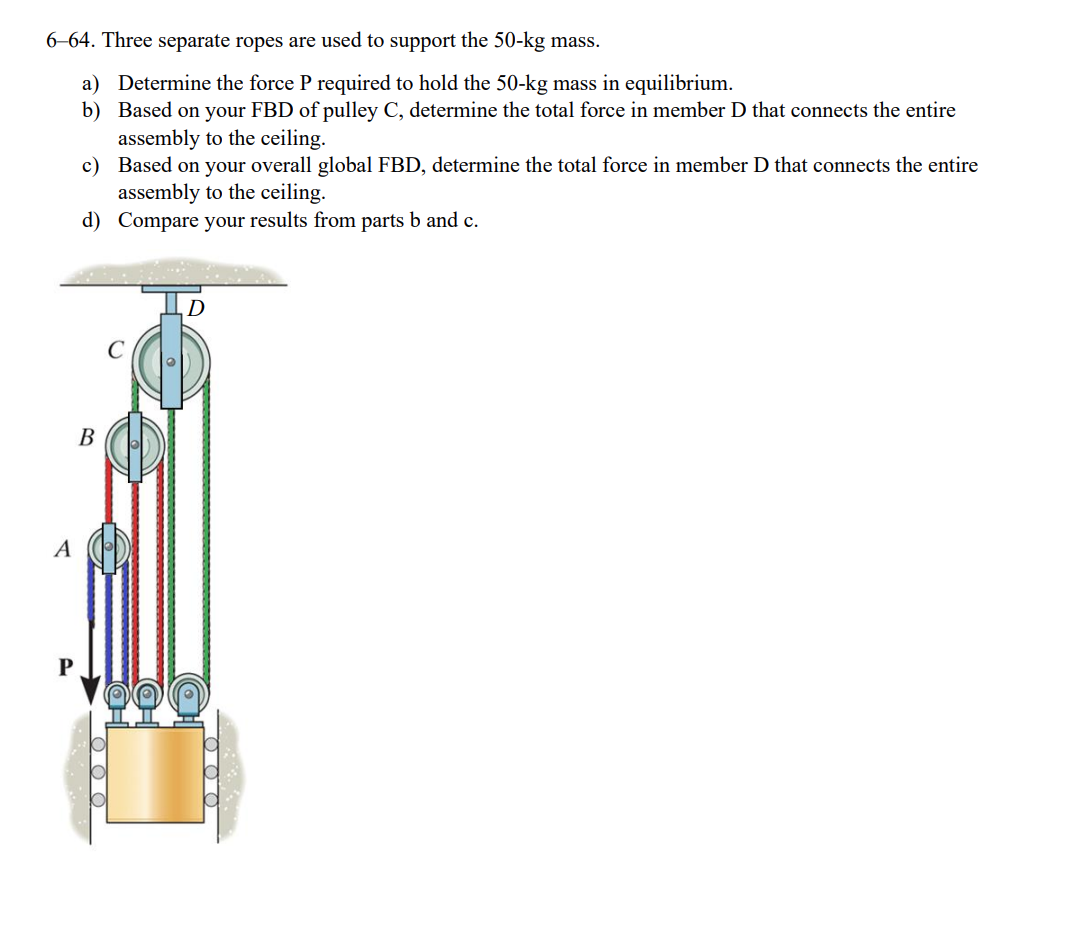

6-64. Three separate ropes are used to support the 50-kg mass. Draw a free body diagram of the whole system and of each pulley
a) Determine the force P required to hold the 50-kg mass in equilibrium.
b) Based on your FBD of pulley C, determine the total force in member D that connects the entire
assembly to the ceiling.
c) Based on your overall global FBD, determine the total force in member D that connects the entire
assembly to the ceiling.
d) Compare your results from parts b and c .
