Question: * 6 - 6 8 . The bridge frame consists of three segments which can be considered pinned at A , D , and E

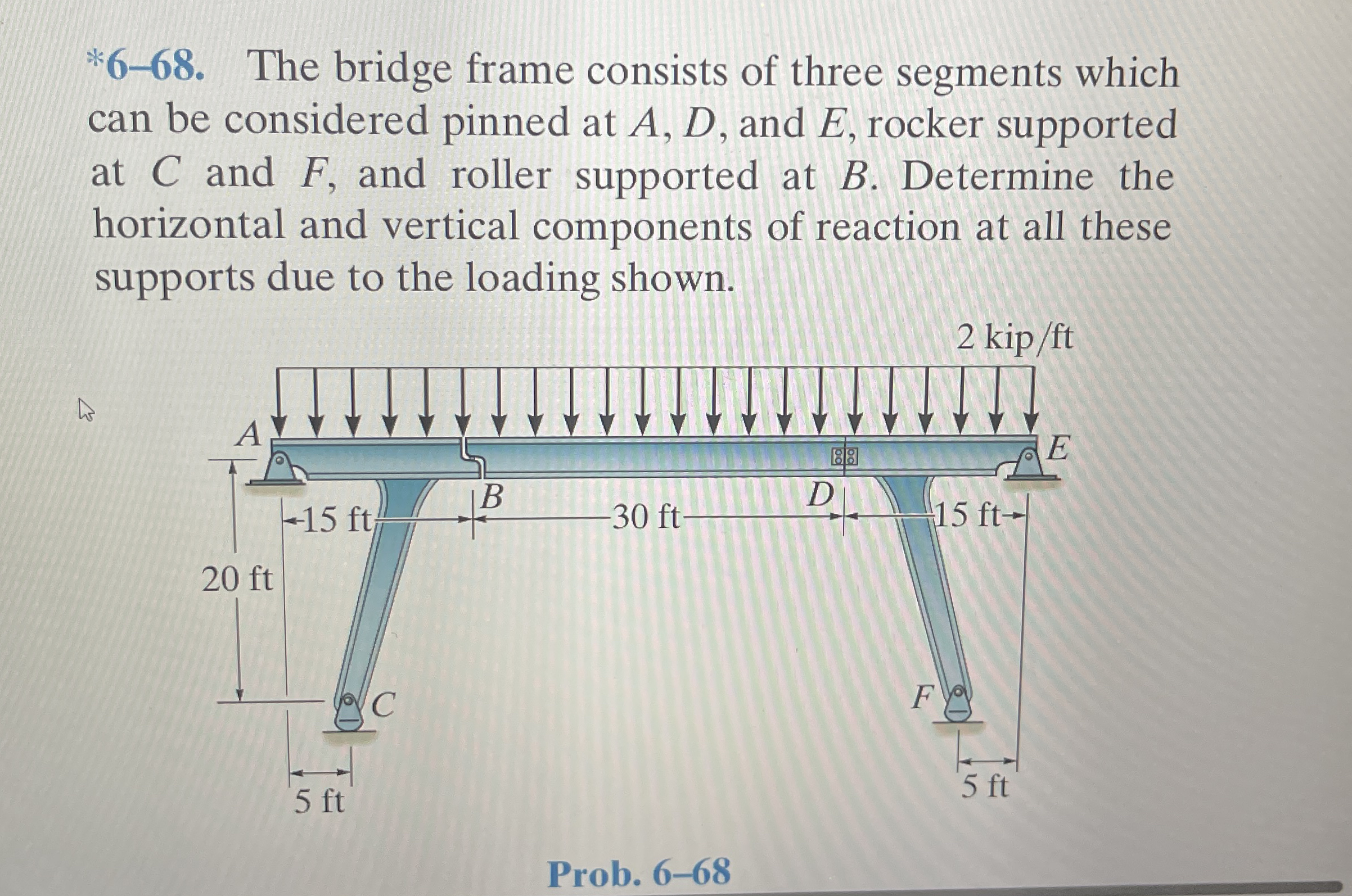

*6-68. The bridge frame consists of three segments which can be considered pinned at A,D, and E, rocker supported at C and F, and roller supported at B. Determine the horizontal and vertical components of reaction at all these supports due to the loading shown.
* 6 - 6 8 . The bridge frame consists of three

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
