Question: * 6 - 7 6 . Determine the horizontal and vertical components of force which the pins at A and B exert on the frame.

*6-76. Determine the horizontal and vertical components of force which the pins at A and B exert on the frame.

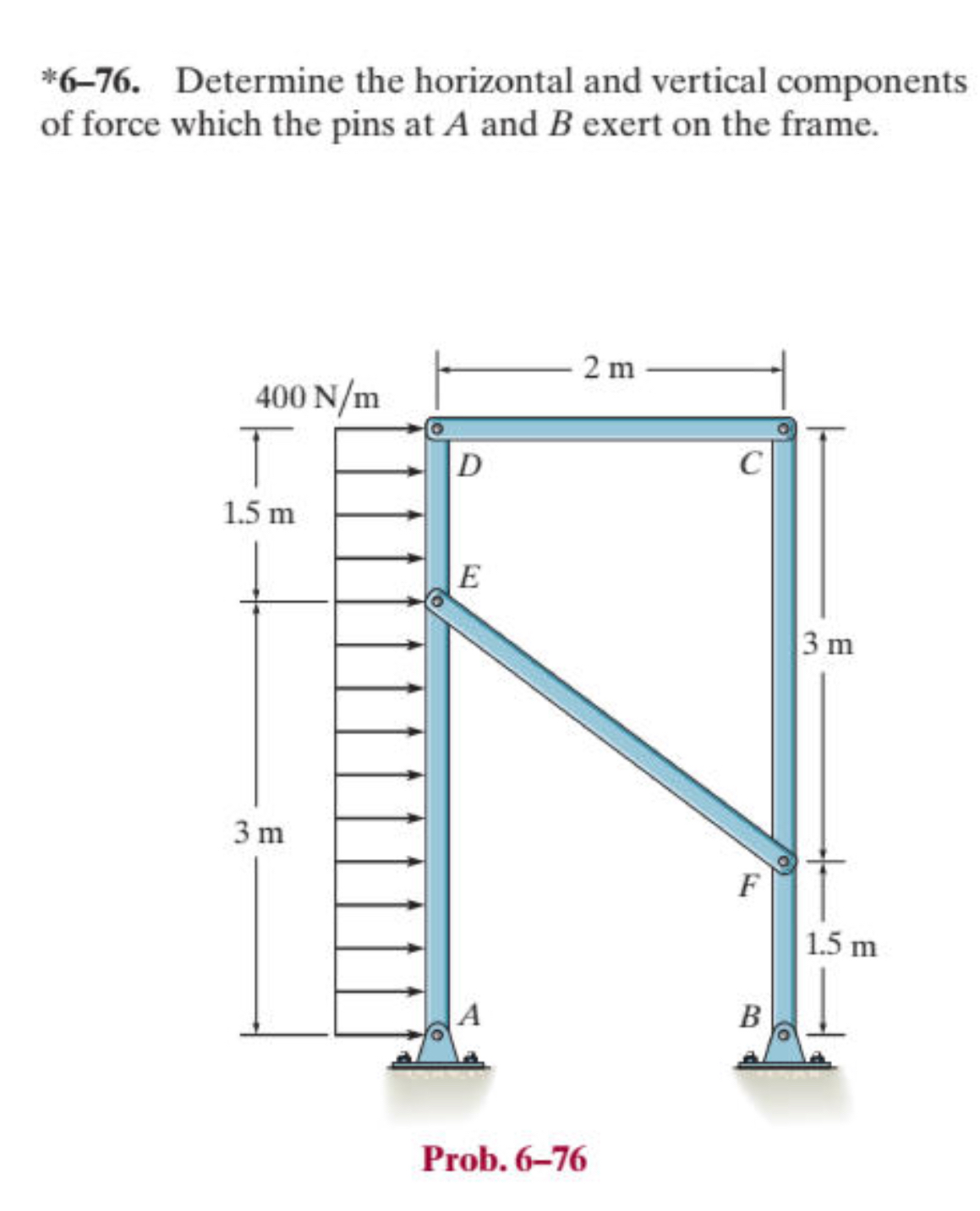

Prob. 6-76
* 6 - 7 6 . Determine the horizontal and vertical

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
