Question: * 6 - 8 . Determine the force in each member of the truss and state if the members are in tension or compression. Method

*6-8.

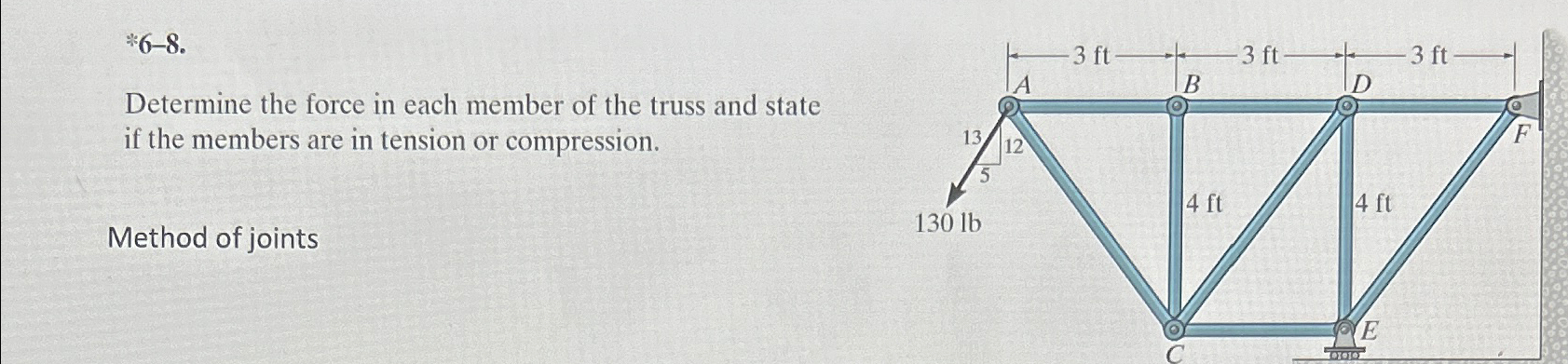

Determine the force in each member of the truss and state if the members are in tension or compression.
Method of joints
* 6 - 8 . Determine the force in each member of

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Civil Engineering Questions!
