Question: ( 6 ) For the four forces and a couple applied on the frame shown, determine the resultant force and the resultant moment at point

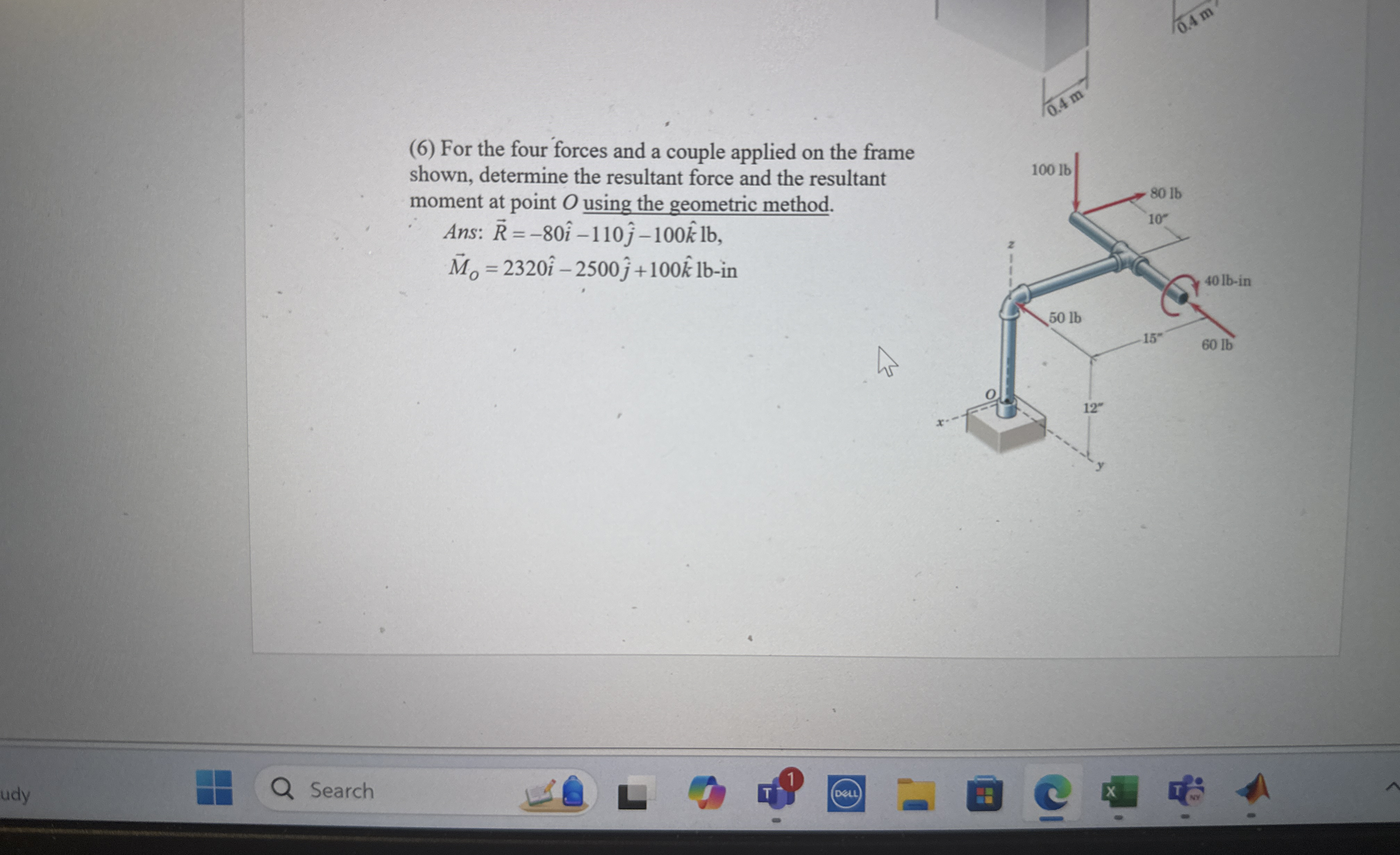

(6) For the four forces and a couple applied on the frame shown, determine the resultant force and the resultant moment at point O using the geometric method.
Ans: vec(R)=-80hat(i)-110hat(j)-100hat(k)lb
vec(M)O=2320hat(i)-2500hat(j)+100hat(k)lb-in
( 6 ) For the four forces and a couple applied on

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
