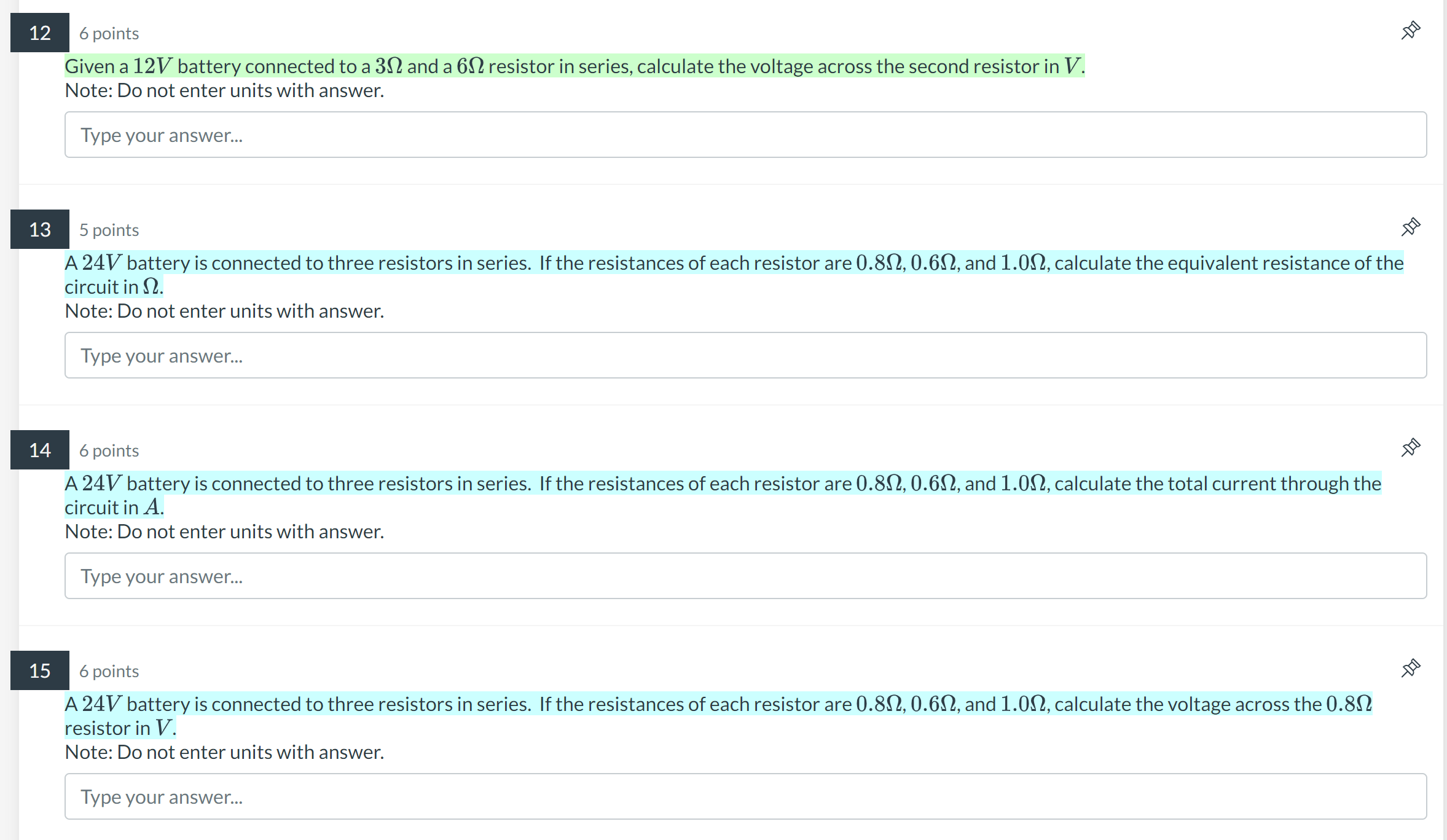

Question: 6 points Given a 12V battery connected to a 39 and a 69 resistor in series, calculate the voltage across the second resistor in V.

6 points Given a 12V battery connected to a 39 and a 69 resistor in series, calculate the voltage across the second resistor

in V. Note: Do not enter units with answer. Type your answer...

5 points Q A 24V battery is connected to three resistors in

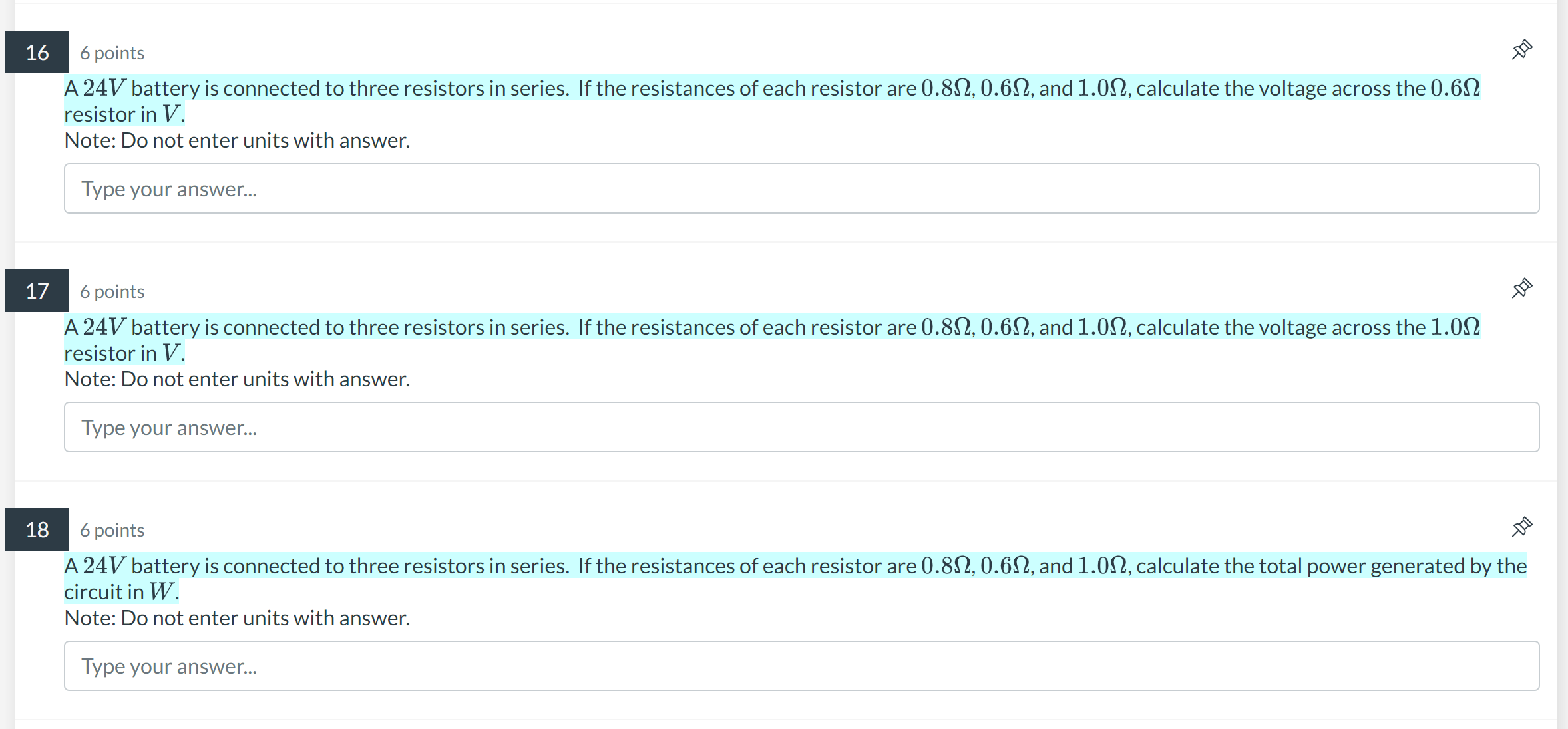

6 points Given a 12V battery connected to a 39 and a 69 resistor in series, calculate the voltage across the second resistor in V. Note: Do not enter units with answer. Type your answer... 5 points Q A 24V battery is connected to three resistors in series. If the resistances of each resistor are 0.89, 0.69, and 1.09, calculate the equivalent resistance of the circuit in 9. Note: Do not enter units with answer. Type your answer... 6 points A 24V battery is connected to three resistors in series. If the resistances of each resistor are 0.89, 0.69, and 1.09, calculate the total current through the circuit in A. Note: Do not enter units with answer. Type your answer... 6 points Q A 24V battery is connected to three resistors in series. If the resistances of each resistor are 0.89, 0.69, and 1.09, calculate the voltage across the 0.89 resistor in V. Note: Do not enter units with answer. Type your answer... 6 points > A 24V battery is connected to three resistors in series. If the resistances of each resistor are 0.89, 0.69, and 1.09, calculate the voltage across the 0.69 resistor in V. Note: Do not enter units with answer. Type your answer... 6 points Q A 24V battery is connected to three resistors in series. If the resistances of each resistor are 0.89, 0.69, and 1.09, calculate the voltage across the 1.09 resistor in V. Note: Do not enter units with answer. Type your answer... 6 points Q A 24V battery is connected to three resistors in series. If the resistances of each resistor are 0.89, 0.69, and 1.09, calculate the total power generated by the circuit in W. Note: Do not enter units with answer. Type your

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Physics Questions!
