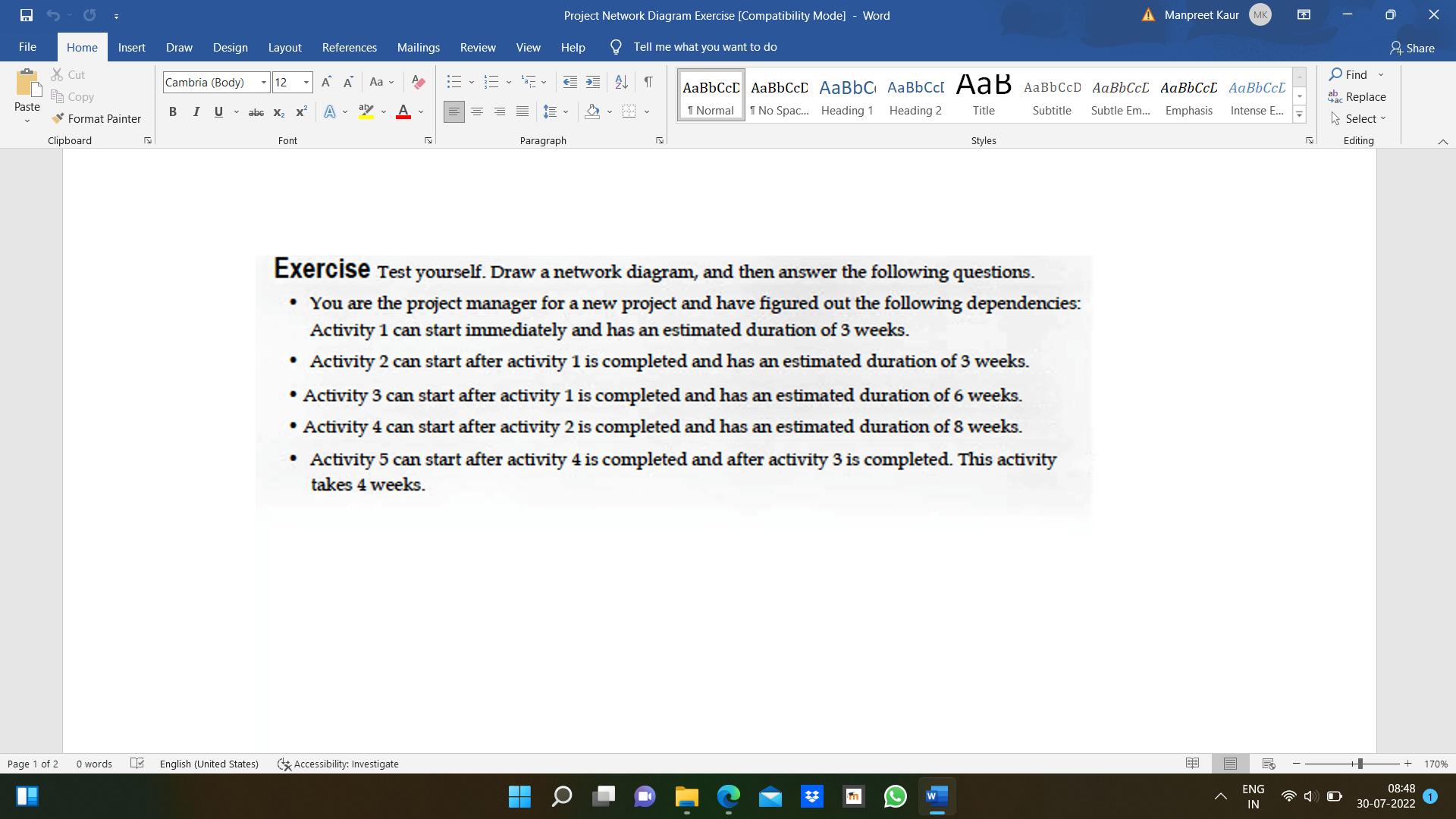

6 Project Network Diagram Exercise [Compatibility Mode] - Word A Manpreet Kaur X File Home Insert Draw Design Layout References Mailings Review View Help Tell me what you want to do Share do Cut Find Cambria (Body) - 12 - A A Aa~ A AaBbCcD AaBbCcD AaBbC AaBbCc Ad B AaBbCCD AaBbCCD AaBbCCE AaBbCCD Copy Gac Replace Paste Format Painter BIU~ abe X2 x AZA 1 Normal 1 No Spac... Heading 1 Heading 2 Title Subtitle Subtle Em... Emphasis Intense E... F Select Clipboard Font Paragraph Styles Editing Exercise Test yourself. Draw a network diagram, and then answer the following questions. . You are the project manager for a new project and have figured out the following dependencies: Activity 1 can start immediately and has an estimated duration of 3 weeks. . Activity 2 can start after activity 1 is completed and has an estimated duration of 3 weeks. . Activity 3 can start after activity 1 is completed and has an estimated duration of 6 weeks. . Activity 4 can start after activity 2 is completed and has an estimated duration of 8 weeks. . Activity 5 can start after activity 4 is completed and after activity 3 is completed. This activity takes 4 weeks. Page 1 of 2 0 words [ English (United States) ( Accessibility: Investigate + + 170% W ENG 08:48 IN 30-07-2022 1
