Question: 6.101 For the frame and loading shown, determine the components of all forces acting on member ABD. 6 in. 9 in.- -9 in.9 in.

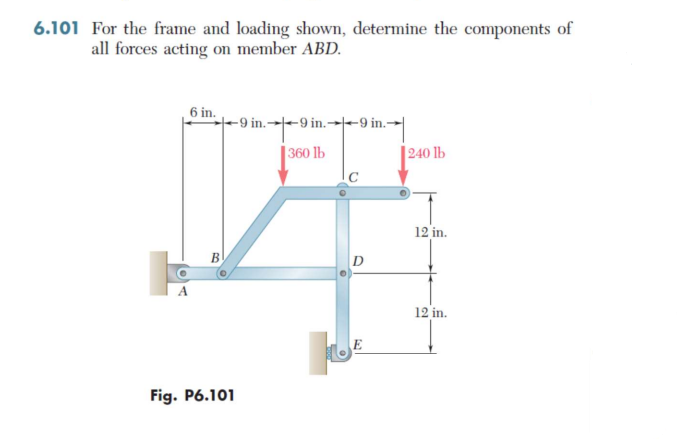

6.101 For the frame and loading shown, determine the components of all forces acting on member ABD. 6 in. 9 in.- -9 in.9 in. 360 lb 240 lb B Fig. P6.101 12 in. 12 in.

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Coolbrook Company has the following information available for the past year: Sales revenue River Division $ 1,219,000 894,000 $ 325,000 $ 1,040,000 Stream Division $ 1,819,000 1,282,000 $ 537,000 $...

Determine the components of all forces acting on member ABD of the frame shown. 6 ft 300 lb 450 lb 4 ft-4 ft-4 ft 4 ft
