Question: 7 . 1 1 - 3 Determine the maximum service load, P , that can be applied if the live load - to - dead

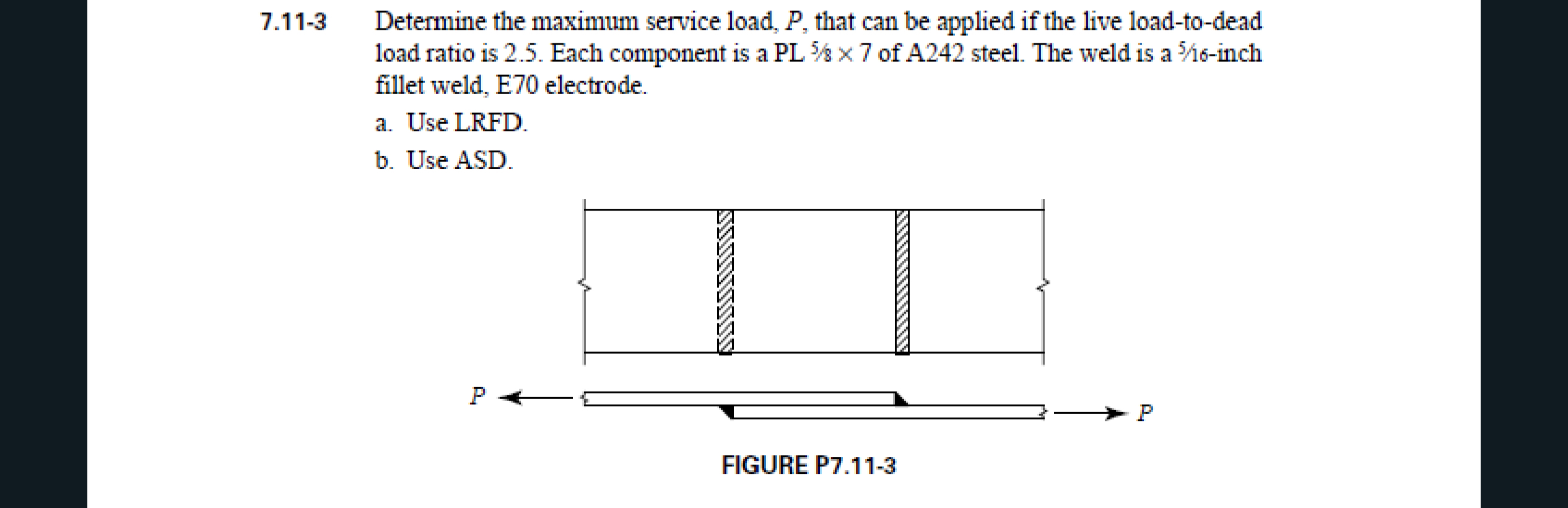

7.11-3 Determine the maximum service load, P, that can be applied if the live load-to-dead load ratio is 2.5. Each component is a PL 587 of A242 steel. The weld is a 516-inch fillet weld, E70 electrode.
a. Use LRFD.
b. Use ASD.
7 . 1 1 - 3 Determine the maximum service load, P

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
