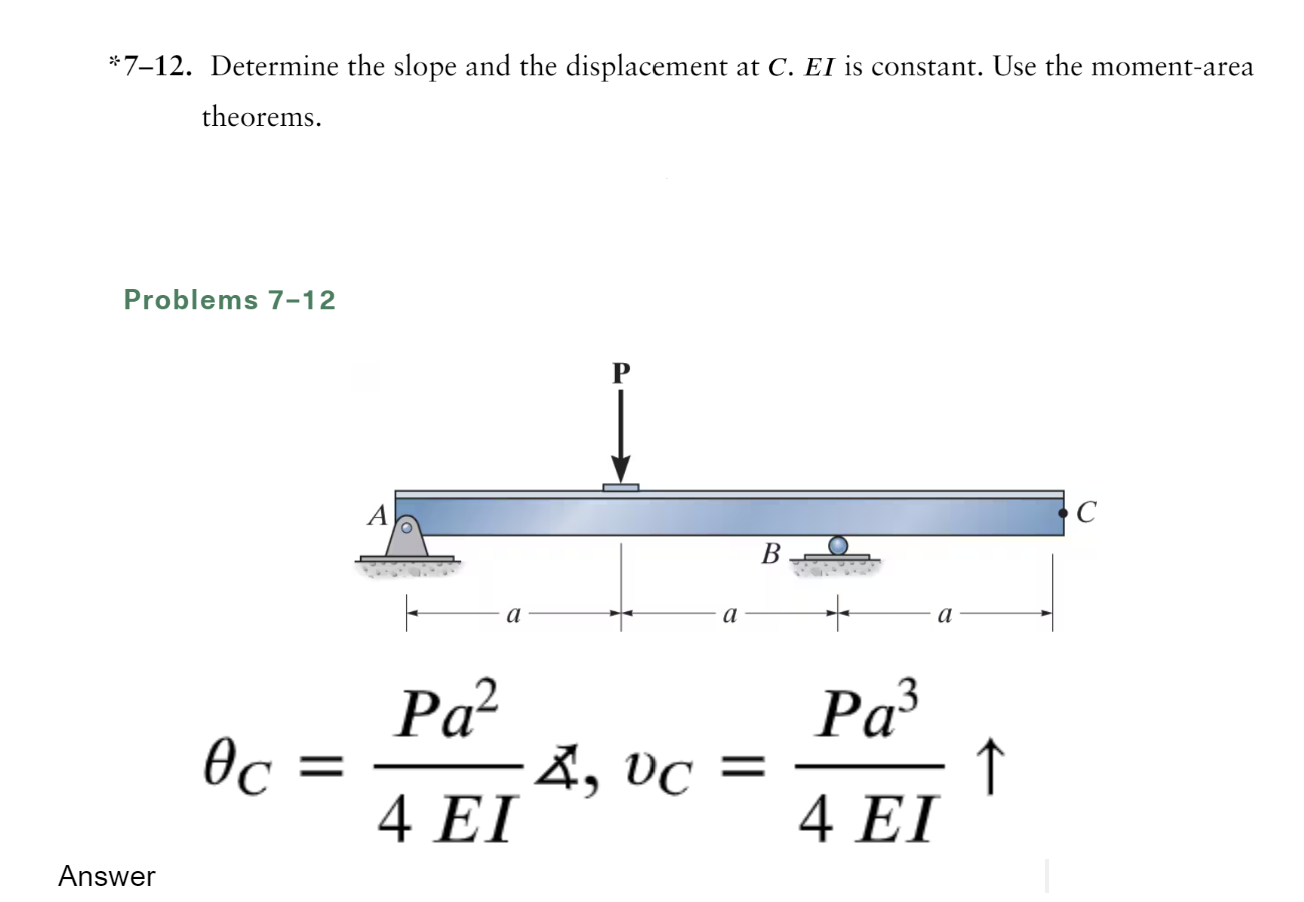

Question: * 7 - 1 2 . Determine the slope and the displacement at C . EI is constant. Use the moment - area theorems. Problems

*7-12. Determine the slope and the displacement at C. EI is constant. Use the moment-area
theorems.
Problems 7-12
Please show all steps in detail; Also explain why we take the slope from B to C, what does having the same slope have to do with the equation? And then why do we subtract t c/d from t b/d? Confused where on the beam we take points, why not just A to C. THANK YOU SO MUCH!!!
* 7 - 1 2 . Determine the slope and the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
