Question: 7 - 1 4 . Determine the normal force, shear force, and moment at a section passing through point D of the two - member

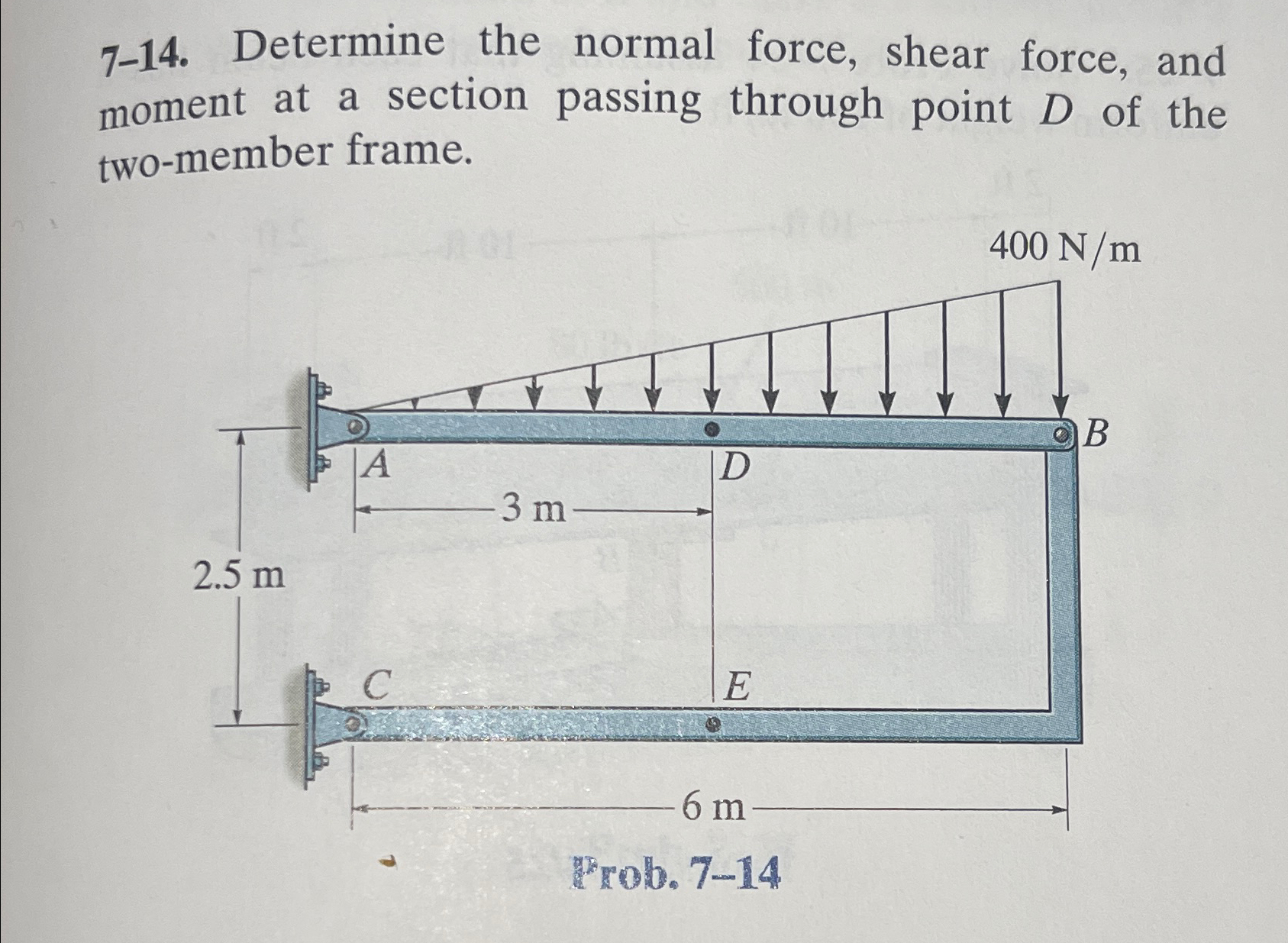

7-14. Determine the normal force, shear force, and moment at a section passing through point D of the two-member frame.
7 - 1 4 . Determine the normal force, shear

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Civil Engineering Questions!

Q:

Determine the normal force, shear force, and moment at a section passing through point D of the two-member frame. Units Used: kN = 103 N Given: w = 0.75kN/m F = 4 kN a = 1.5 m d = 1.5 m b = 1.5 m e =...

Q:

The shaft is supported by a journal bearing at A and a thrust bearing at B. Determine the normal force, shear force, and moment at a section passing through (a) Point C, which is just to the right of...

Q:

Determine the normal force shear force and moment at a section passing through point D of the two memberframe. 400 N/m 200 N/m 2.5 m 6m-

Q:

Determine the normal force, shear force, and moment at a section passing through point D of the two-memberframe. 1.5m 1.5 m- 0.75 kN/m 25 m 4 kN 1.5 m

Q:

Determine the normal force, shear force, and moment at a section passing through point D. Take w =150N/m. 3 m 4 m

Q:

Determine the normal force, shear force, and moment at a section passing through point D of the two-member frame. Units Used: kN = 103 N Given: w = 400N/m a = 2.5 m b = 3 m c = 6 m -

Q:

Determine the normal force, shear force, and moment at a section passing through point D of the two-memberframe. 400 N/m 25 m

Q:

Determine the normal force, shear force, and moment at a section passing through point C. Assume the support at A can be approximated by a pin and B as aroller. 8 kip 10 kip 0.8 kip/ft -12 ft- -6ft-...

Q:

Determine the normal force, shear force, and moment at a section passing through point C . Take P = 8 kN .

Q:

Determine the normal force, shear force, and moment at a section passing through point D of the two-member frame. Units Used: kN = 103 N Given: w1 = 200N/m w2 = 400N/m a = 2.5 m b = 3 m c = 6 m W2...
